Tie-Rod End Replacement

SPECIAL SERVICE TOOL (SST)

49 T028 3A0
Ball joint puller set

Courtesy of MAZDA MOTORS CORP.

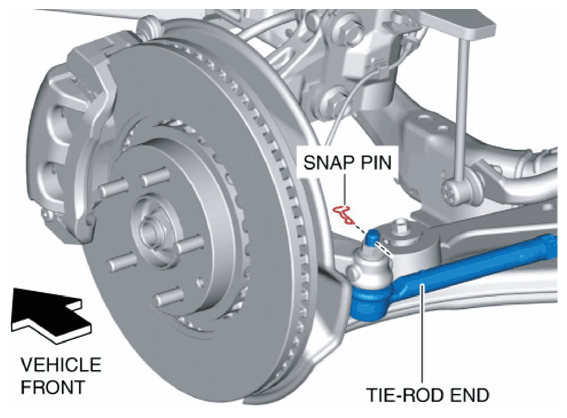

Remove the snap pin from the tie-rod end.

Fig 1: Removing Snap Pin From Tie-Rod End
Courtesy of MAZDA MOTORS CORP.

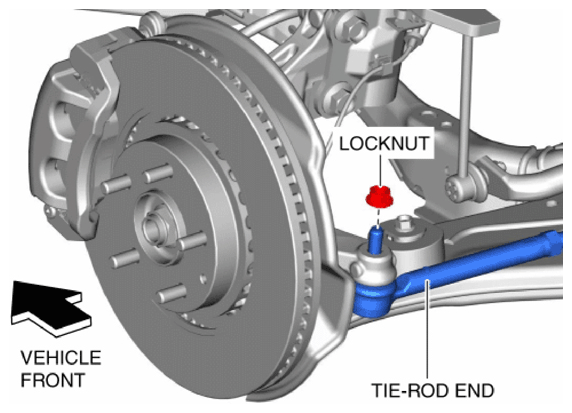

Loosen the locknut of the tie-rod end.

Fig 2: Identifying Locknut And Tie-Rod End
Courtesy of MAZDA MOTORS CORP.

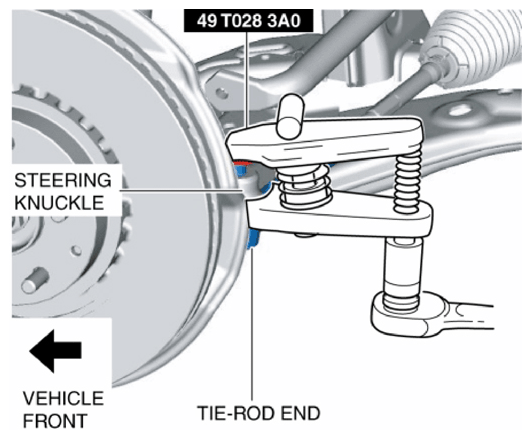

Using the SST , disconnect the steering knuckle and tie-rod end.

Fig 3: Disconnecting Steering Knuckle And Tie-Rod End Using SST
Courtesy of MAZDA MOTORS CORP.

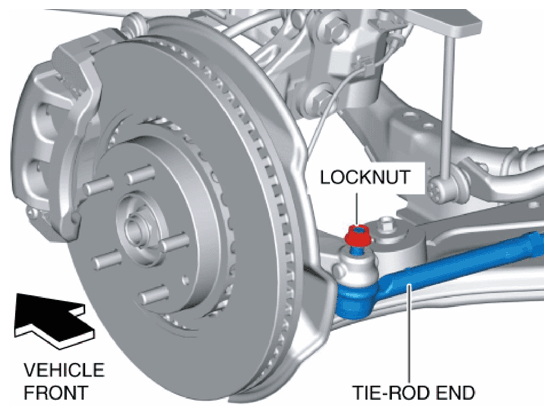

Remove the locknut from the tie-rod end.

Fig 4: Removing Locknut From Tie-Rod End
Courtesy of MAZDA MOTORS CORP.

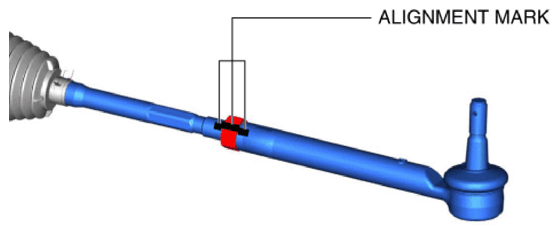

Place alignment marks as shown in the figure for proper installation.

Fig 5: Identifying Alignment Marks On Tie-Rod
Courtesy of MAZDA MOTORS CORP.

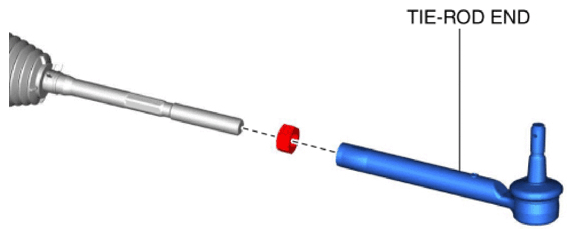

Remove the tie-rod end.

Fig 6: Removing Tie-Rod End
Courtesy of MAZDA MOTORS CORP.

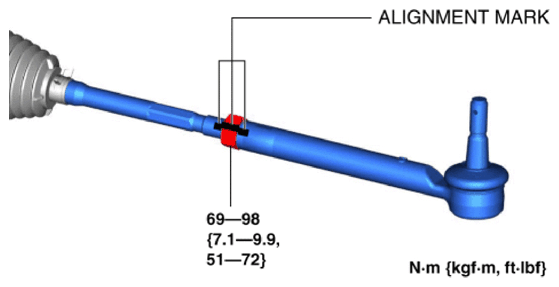

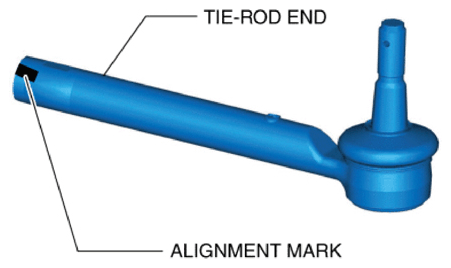

Place alignment marks on the new tie-rod end in the same positions as the removed tie-rod end.

Fig 7: Identifying Alignment Marks On Tie-Rod End
Courtesy of MAZDA MOTORS CORP.
Align the marks that were made before removing the tie-rod end, and assemble the tie-rod end to the tie rod.

Fig 8: Identifying Alignment Marks On Tie-Rod End And Tie-Rod
Courtesy of MAZDA MOTORS CORP.

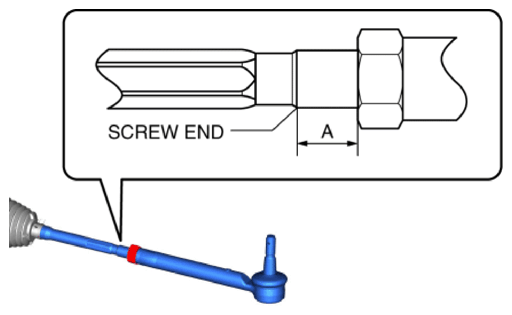

Verify that dimension A shown in the figure is within the specification.

Fig 9: Identifying Dimension On Screw End
Courtesy of MAZDA MOTORS CORP.

Specification
- 8.9-21.9 mm {0.36-0.86 in}
- If not within the specification, make adjustments so that dimension A is within the specification.

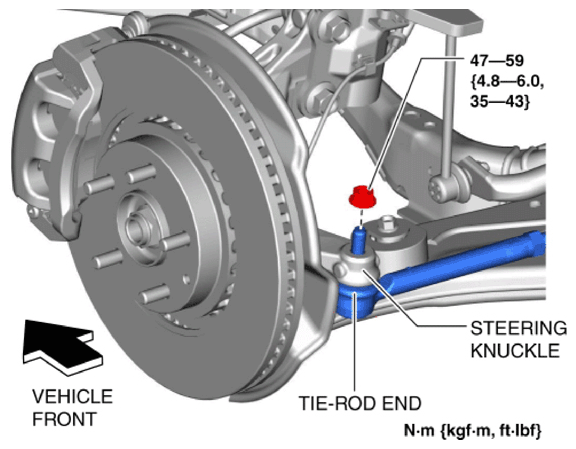

Install the tie-rod end to the steering knuckle.

Fig 10: Installing Tie-Rod End To Steering Knuckle
Courtesy of MAZDA MOTORS CORP.

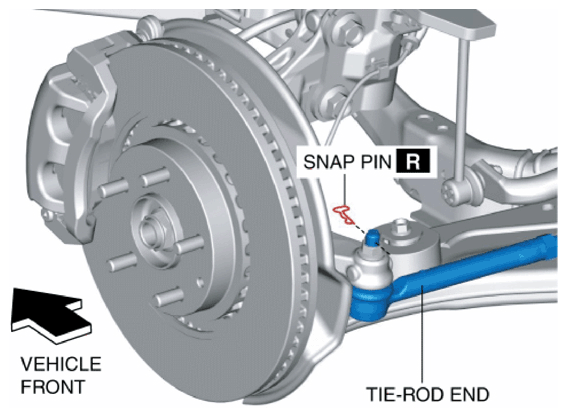

Install a new snap pin to the tie-rod end.

Fig 11: Installing Snap Pin To Tie-Rod End
Courtesy of MAZDA MOTORS CORP.
After installation, inspect the front wheel alignment and adjust it if necessary. (Refer to FRONT WHEEL ALIGNMENT .)
