Steering Wheel Bezel Removal/Installation: Notes
WARNING:
- Handling the driver-side air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (Refer to AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (Refer to AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (Refer to AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (Refer to AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
- Disconnect the negative battery terminal and wait for 1 min or more . (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the driver-side air bag module. (Refer to DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (Refer to DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (Refer to DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (Refer to DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
- Remove the steering switch. (Refer to STEERING SWITCH REMOVAL/INSTALLATION .)

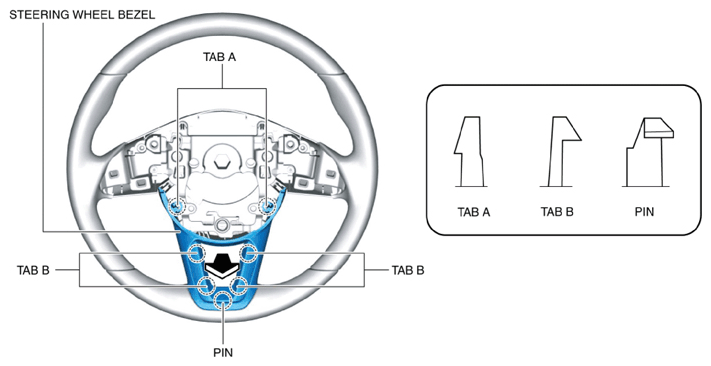

- Pull the steering wheel bezel in the direction of the arrow shown in the figure, and detach tabs A and B, and the pin.

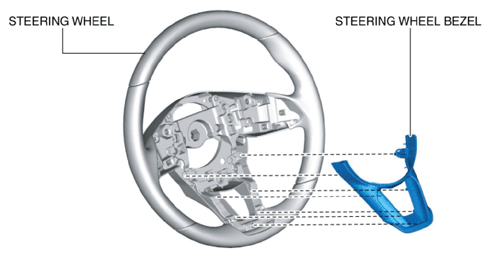

- Remove the steering wheel bezel from the steering wheel. (Refer to STEERING WHEEL BEZEL INSTALLATION NOTE .)
- Install in the reverse order of removal.
