Steering Column Component Installation Note

CAUTION:
  • Always lock the adjusting lever to prevent damage to the steering column. In addition, do not unlock the adjusting lever until after the steering column installation is completed.
  • If the steering column is installed, install it according to the procedure to prevent damage to intermediate shaft that could result if the steering column is installed in the incorrect order.
  1. Verify that the adjusting lever of the steering column component is locked.

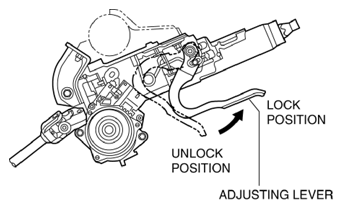

    Fig 1: Inspecting Steering Column Component Adjusting Lever Lock Position
    G10948186Courtesy of MAZDA MOTORS CORP.
  2. Temporarily install the steering column component to the dashboard member using nuts A and B.
    Fig 2: Installing Steering Column Component Nuts
    G10948187Courtesy of MAZDA MOTORS CORP.
  3. Tighten the nuts in the order of nut A and nut B.

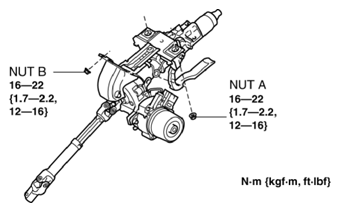

    Fig 3: Steering Column Component Nuts Tightening Sequence
    G10948188Courtesy of MAZDA MOTORS CORP.
  4. Insert the intermediate shaft into the steering gear (pinion shaft) to the position shown in the figure, and tighten it using a new joint bolt.

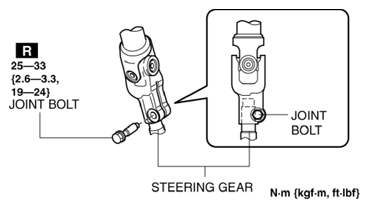

    Fig 4: Identifying Steering Gear Joint Bolt With Torque Specifications
    G10948189Courtesy of MAZDA MOTORS CORP.
