Boot Band Disassembly Note

  1. Insert a flathead screwdriver into the crimped part of the boot band, expand the crimped part and remove the boot band.

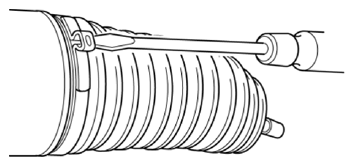

    Fig 1: Removing Boot Band Using Flathead Screwdriver
    G10948230Courtesy of MAZDA MOTORS CORP.
