Third-Row Buckle Removal/Installation

  1. Remove the third-row seat cushion. (Refer to THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
  2. Remove the bolts.

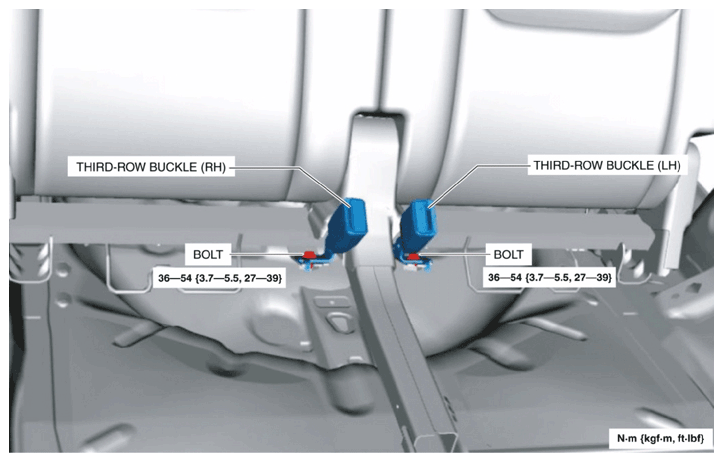

    Fig 1: Removing Third-Row Buckle Bolts
    G10948928Courtesy of MAZDA MOTORS CORP.
  3. Remove the third-row buckle (LH).
  4. Remove the third-row buckle (RH).
  5. Install in the reverse order of removal.
