Control System - Auto A/C
>>
Air Intake Actuator Installation
>>
Air Intake Link Installation Note
Air Intake Link Installation Note
When installing the air intake link, verify that air intake link tab A is installed in air intake link groove A and air intake link tab B is installed in air intake link groove B.

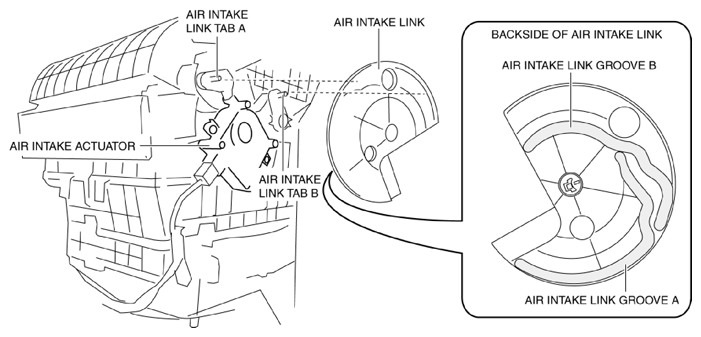

Fig 1: Installing Air Intake Link
Courtesy of MAZDA MOTORS CORP.
