Refrigerant Line Removal/Installation: Notes

NOTE:

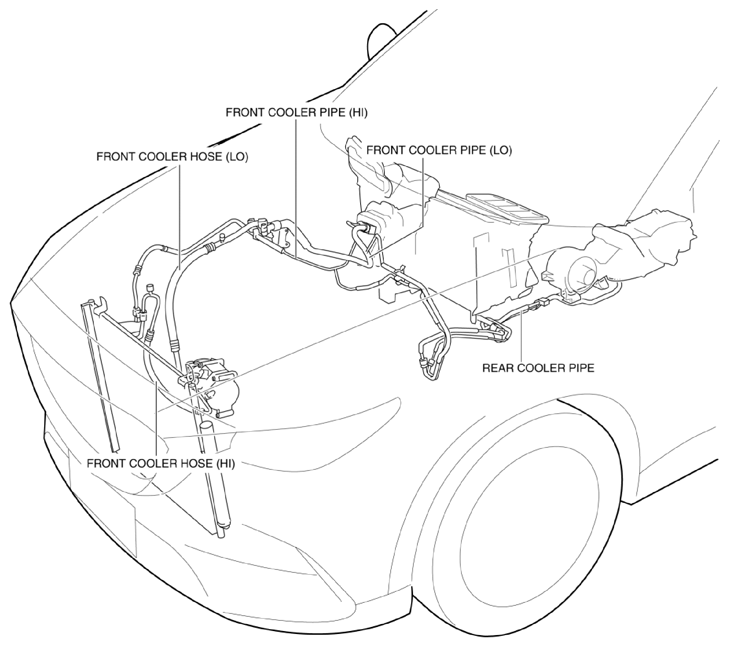

The refrigerant line consists of the following parts.

Fig 1: Identifying Refrigerant Line Related Components

G10948420

Courtesy of MAZDA MOTORS CORP.
