Front Air Mix Link Assembly Note

  1. Align the positions of the front A/C unit side gears with the positions of the front air mix link gears as shown in the figure.

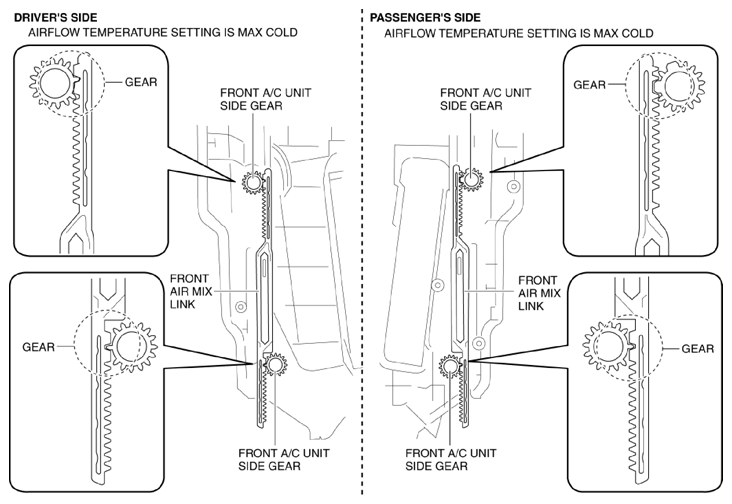

    Fig 1: Aligning Front A/C Unit Side Gears Position With Front Air Mix Link Gears Position
    G10948334Courtesy of MAZDA MOTORS CORP.
