Timing Chain Removal/Installation
>>
Timing Chain Installation
>>
Oil Shower Pipe Installation Note
Oil Shower Pipe Installation Note

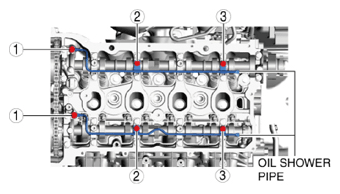

Install the oil shower pipe in the order shown in the figure.
Fig 1: Oil Shower Pipe Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
TORQUE SPECIFICATIONS
Installation position
Tightening torque
1
9-12 N.m {92-122 kgf.cm, 80-106 in.lbf}
2, 3
8.0-9.0 N.m {82-91 kgf.cm, 71-79 in.lbf}
