Rear Oil Seal Replacement: Notes

Special Service Tool (SST)

Mazda SST number Global SST number
1: 49 S033 101 2: - Dust cover installer	Courtesy of MAZDA MOTORS CORP.

Remove the transaxle. (Refer to AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6A-EL] (2WD).) (Refer to AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL] (AWD).)
Remove the drive plate. (Refer to DRIVE PLATE REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL] .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

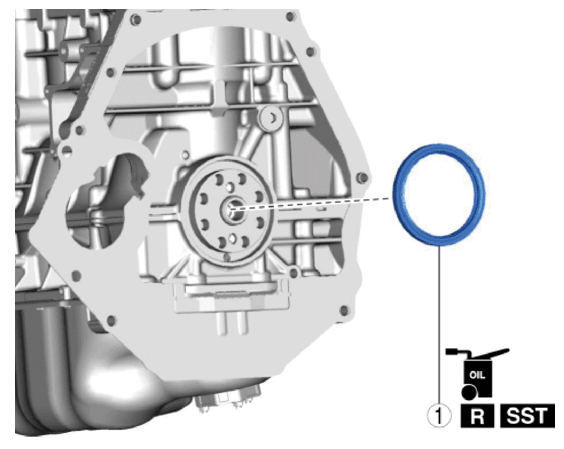

Fig 1: Identifying Rear Oil Seal

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear oil seal (See Rear Oil Seal Removal Note .) (See Rear Oil Seal Installation Note .)
