Plug Hole Plate Removal/Installation: Installation

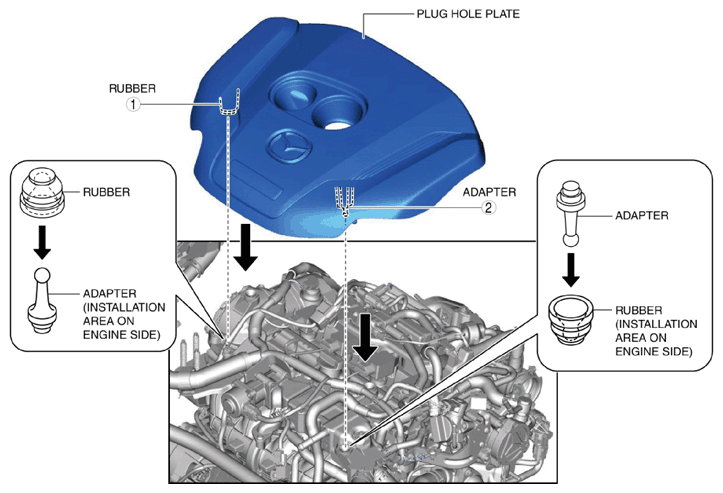

  1. Press the plug hole plate in the order of the numbers shown in the figure and insert the rubber and adapters into the engine.
    Fig 1: Pressing Plug Hole Plate
    G10946318Courtesy of MAZDA MOTORS CORP.

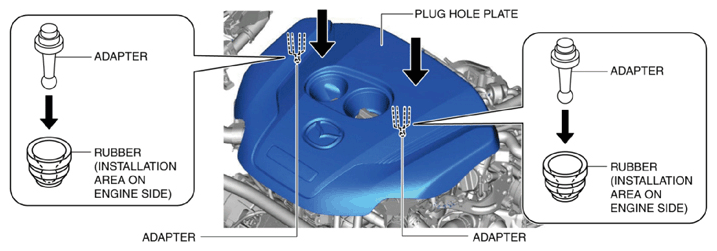

  2. While simultaneously pressing the areas indicated by the arrows on the plug hole plate, insert the adapters into the rubber on the engine.
    Fig 2: Inserting Adapters Into Rubber On Engine
    G10946319Courtesy of MAZDA MOTORS CORP.
