Front Oil Seal Replacement: Notes

Special Service Tool (SST)

  1. Mazda SST number
  2. Global SST number
1: 49 UN20 5072
2: 205-072
Holder
G10946561Courtesy of MAZDA MOTORS CORP.
 1: 49 B011 105
2: -
Adapter
G10946562Courtesy of MAZDA MOTORS CORP.
 1: 49 H010 401
2: -
Oil seal installer
G10946563Courtesy of MAZDA MOTORS CORP.
WARNING:
  • A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.
  1. Remove the front under cover No. 2. (Refer to FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  2. Remove the front splash shield (RH). (Refer to FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
  3. Remove the drive belt. (Refer to DRIVE BELT REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.

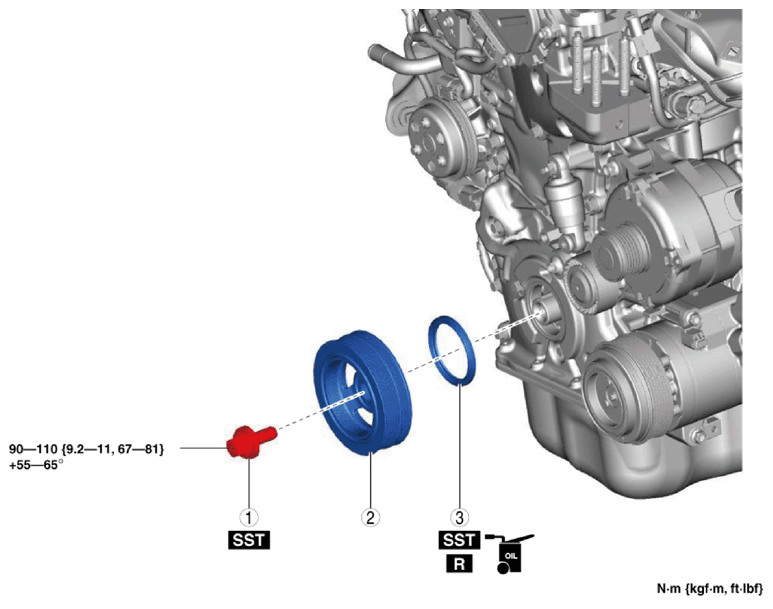

    Fig 1: Identifying Crankshaft Pulley Lock Bolt With Torque Specifications
    G10946564Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Crankshaft pulley lock bolt
    (See Crankshaft Pulley Lock Bolt Removal Note .)
    (See Crankshaft Pulley Lock Bolt Installation Note .)
    2 Crankshaft pulley
    3 (See Front Oil Seal Removal Note .)
    (See Front Oil Seal Installation Note .)
    Front oil seal
