No. 1 Engine Mount (2WD): Notes

  1. Remove the front under cover No. 2. (Refer to FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

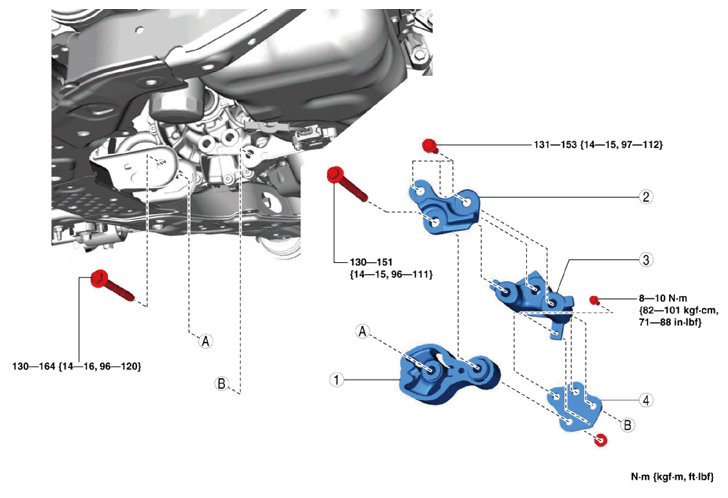

    Fig 1: Engine Mount Bracket & Bolts With Torque Specifications
    G10946575Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 No. 1 engine mount rubber
    (See No. 1 engine mount rubber removal note (2WD) .
    (See No. 1 engine mount installation note (2WD) .
    2 Bracket plate (No. 1)
    (See No. 1 engine mount installation note (2WD) .
    3 No. 1 engine mount bracket
    (See No. 1 engine mount installation note (2WD) .
    4 Bracket plate (No. 2)
    (See No. 1 engine mount installation note (2WD) .
