Exhaust System Removal/Installation (2WD): Notes

Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove in the order indicated in the table.
Remove the insulator. (Refer to EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION (2WD) .)
Install in the reverse order of removal.

Step 1

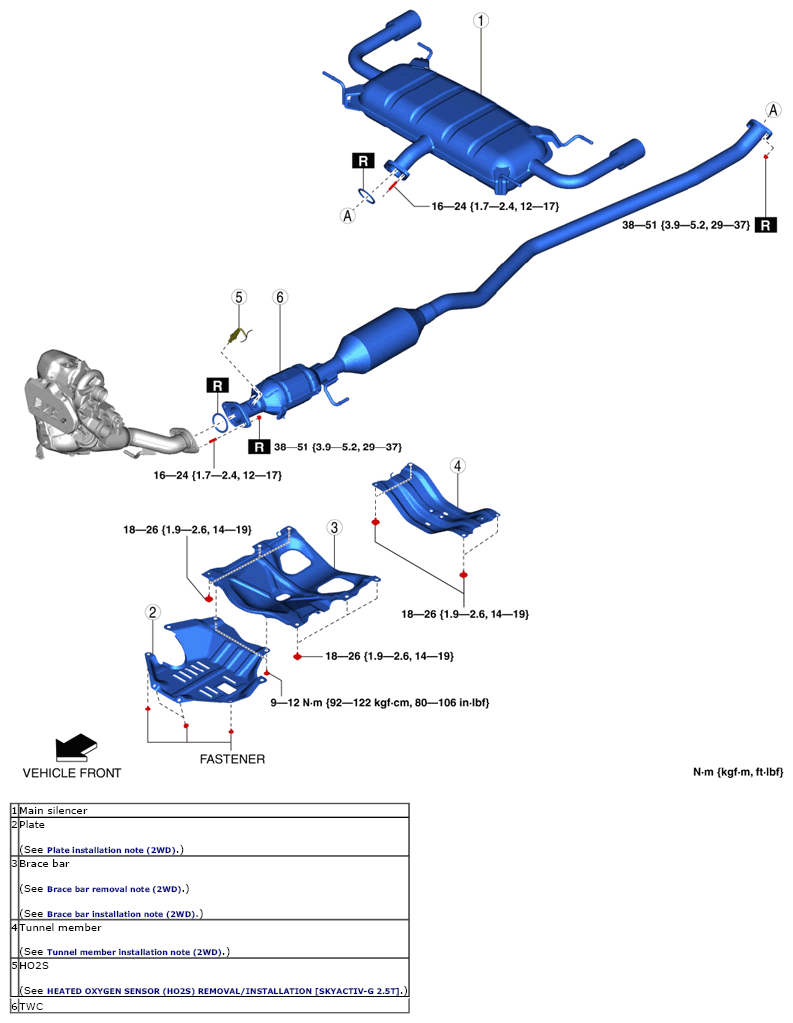

Fig 1: Identifying Exhaust System Components With Torque Specifications (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Step 2

Fig 2: Identifying Exhaust System Components With Torque Specifications (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
