Radiator Removal Note

Remove the wiring harness clips shown in the figure.

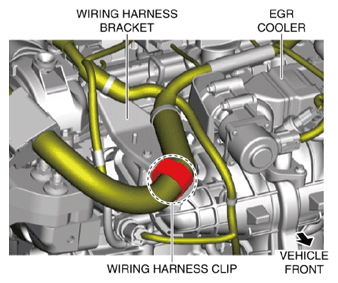

Fig 1: Identifying Wiring Harness Clips (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

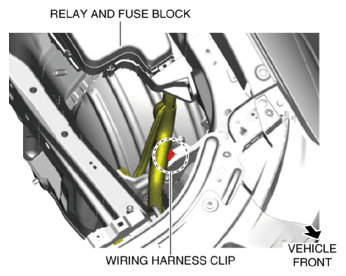

Fig 2: Identifying Wiring Harness Clips (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
To prevent damage to the radiator core, protect it by covering the radiator surface with cardboard.
Lift the radiator and remove it from the radiator installation holes on the shroud panel.
Move the radiator and condenser to the engine side.
Remove the two bolts (lower side) which secure the condenser to the radiator.

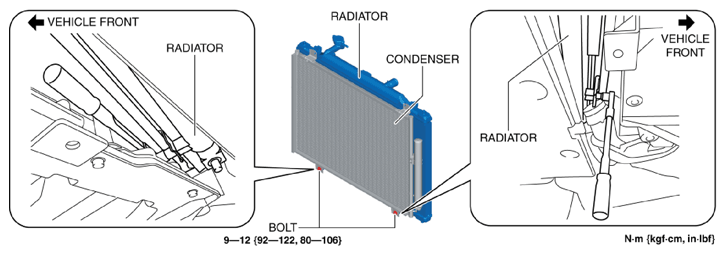

Fig 3: Identifying Condenser Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the two bolts (upper side) which secure the condenser to the radiator.

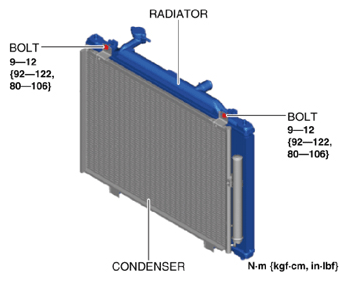

Fig 4: Identifying Condenser Bolts With Torque Specifications (Upper Side)
Courtesy of MAZDA MOTORS CORP.
Remove the radiator from above the engine compartment.
