Water Pump Component Installation Note

Tighten the bolts in the order shown in the figure.

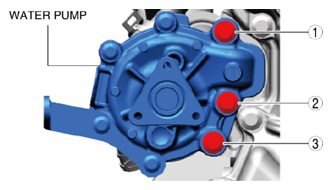

Fig 1: Water Pump Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque
1. 20-26 N. {2.1-2.6 kgf.m, 15-19 ft.lbf}
Install the engine oil pressure sensor/engine oil temperature sensor. (Refer to ENGINE OIL PRESSURE SENSOR/ENGINE OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
Install the wiring harness clip shown in the figure.

Fig 2: Identifying Wiring Harness Clip
Courtesy of MAZDA MOTORS CORP.
Tighten the bolt shown in the figure.

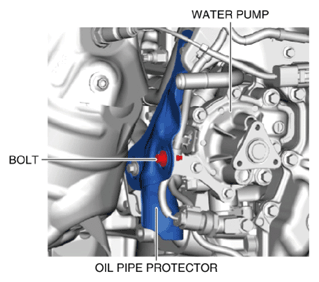

Fig 3: Identifying Oil Pipe Protector Bolt
Courtesy of MAZDA MOTORS CORP.

Tightening torque
- 8-11 N. {82-112 kgf., 71-97 in.lbf}
