Coolant Reserve Tank Removal/Installation: Notes

  1. Remove the plug hole plate. (Refer to PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

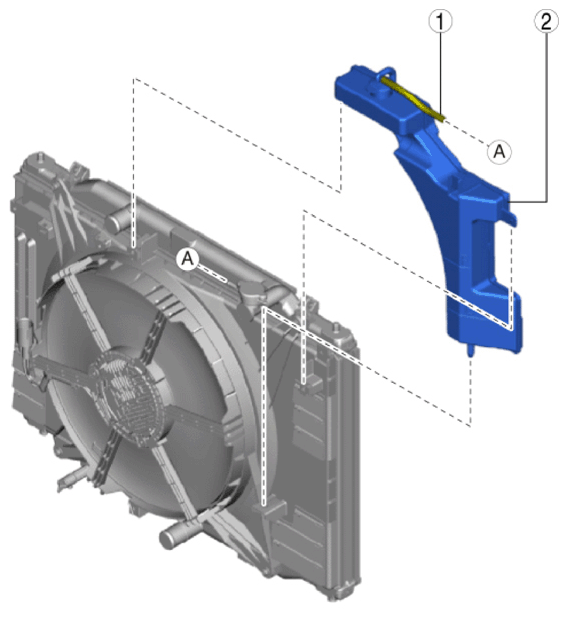

    Fig 1: Identifying Coolant Reserve Tank Components
    G10946729Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Hose
    2 Coolant reserve tank
    (See Coolant Reserve Tank Removal Note .)
