Ultrasonic Sensor Short-Cord Inspection
- Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Rear combination light (Refer to REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
- Rear splash shield (Refer to REAR SPLASH SHIELD REMOVAL/INSTALLATION .)
- Rear bumper (Refer to REAR BUMPER REMOVAL/INSTALLATION .)
- Ultrasonic sensor short-cord (Refer to ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION .)

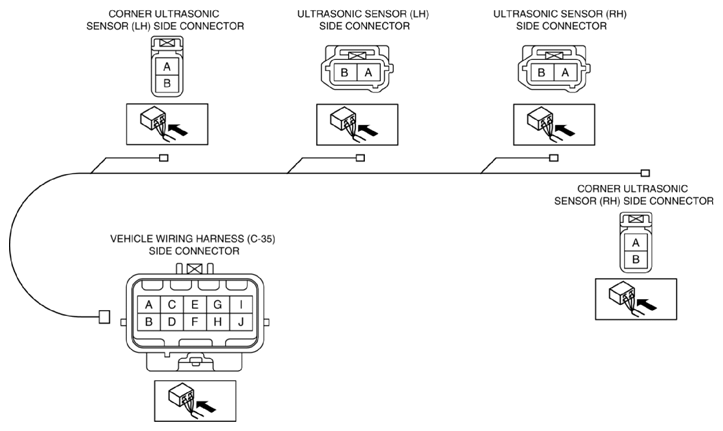

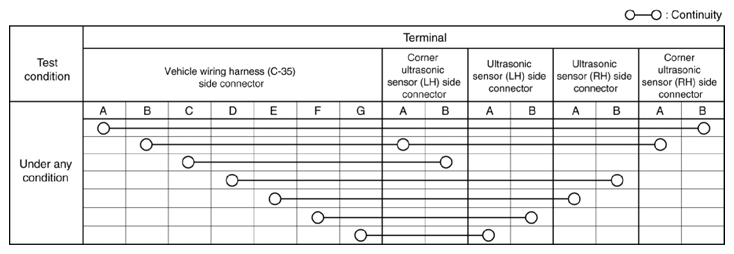

- Verify that the continuity between the ultrasonic sensor short-cord terminals is as indicated in the table.
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the ultrasonic sensor short-cord. (Refer to ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION .)
