Stator coil

Verify that the continuity is as indicated in the table.

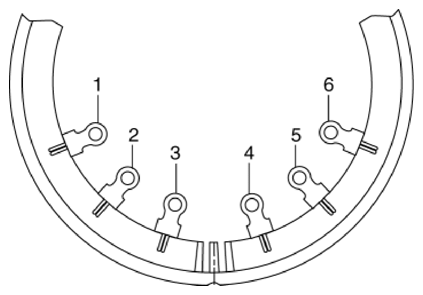

Fig 1: Identifying Stator Coil Terminals
Courtesy of MAZDA MOTORS CORP.

Fig 2: Stator Coil Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.
- If there is any malfunction, replace the stator.
Verify that there is no continuity between the stator coil leads and core using a tester.

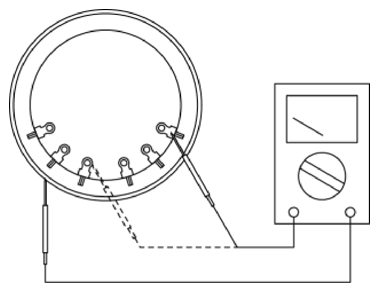

Fig 3: Checking Continuity Between Stator Coil Leads And Core Using Tester
Courtesy of MAZDA MOTORS CORP.
- If there is continuity, replace the stator coil.
