System Wiring Diagram

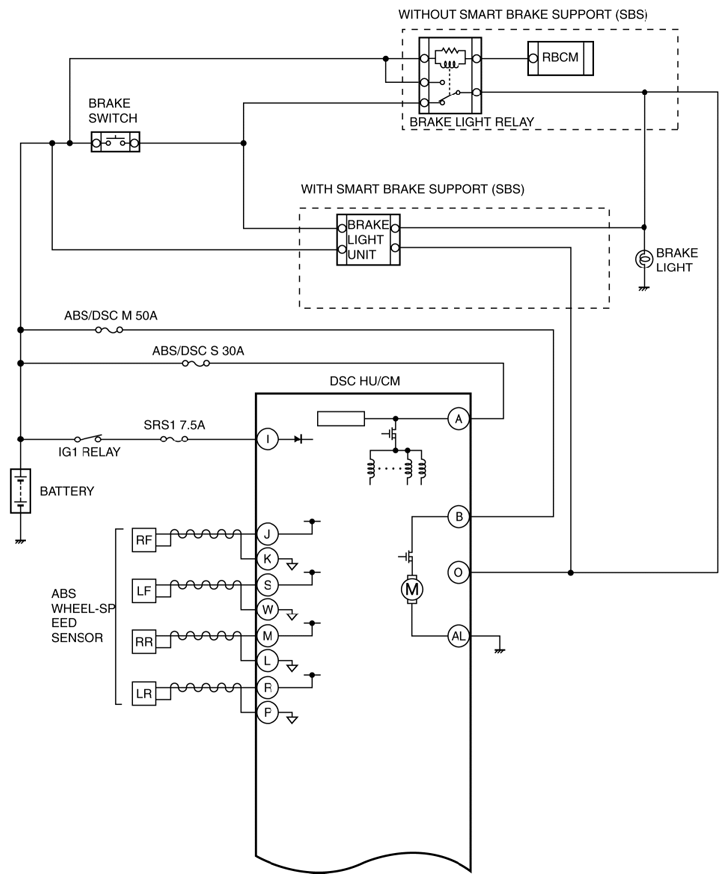

Fig 1: Dynamic Stability Control System Wiring Diagram (1 Of 2)
G10947685Courtesy of MAZDA MOTORS CORP.

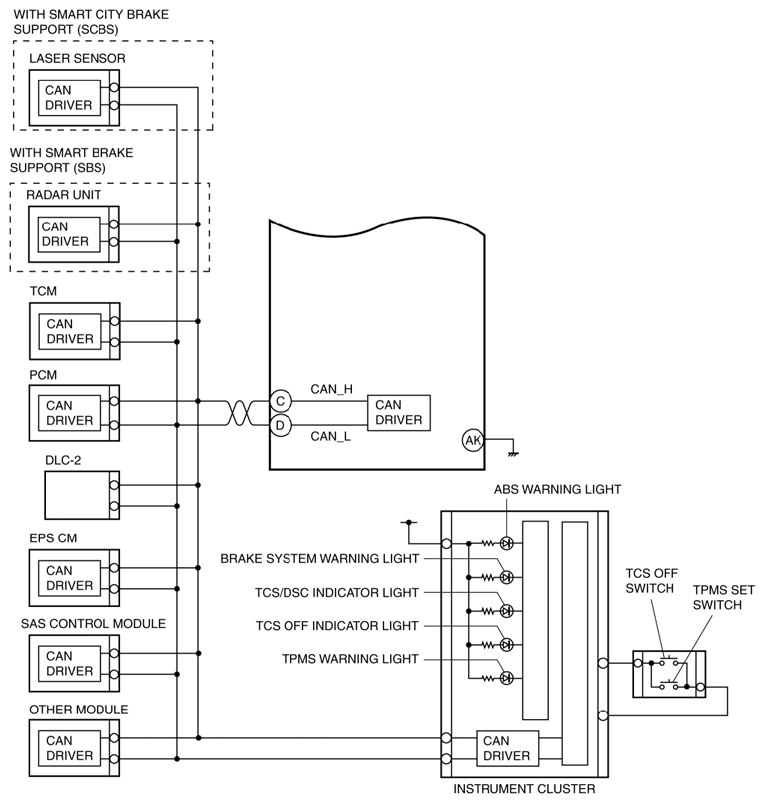

Fig 2: Dynamic Stability Control System Wiring Diagram (2 Of 2)
G10947686Courtesy of MAZDA MOTORS CORP.
