Symptom Troubleshooting - Power Window System
>>
Power Window System Wiring Diagram
Power Window System Wiring Diagram

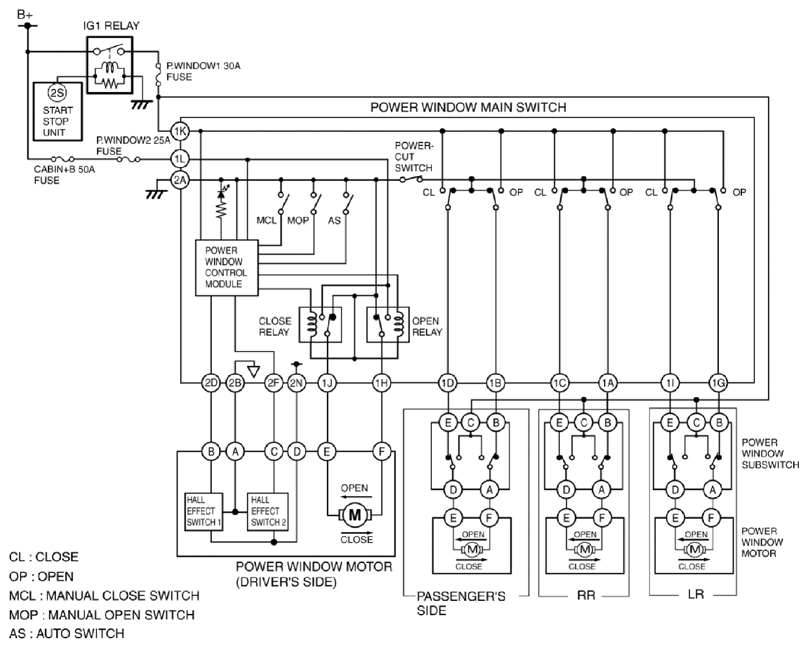

Fig 1: Power Window System Wiring Diagram (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

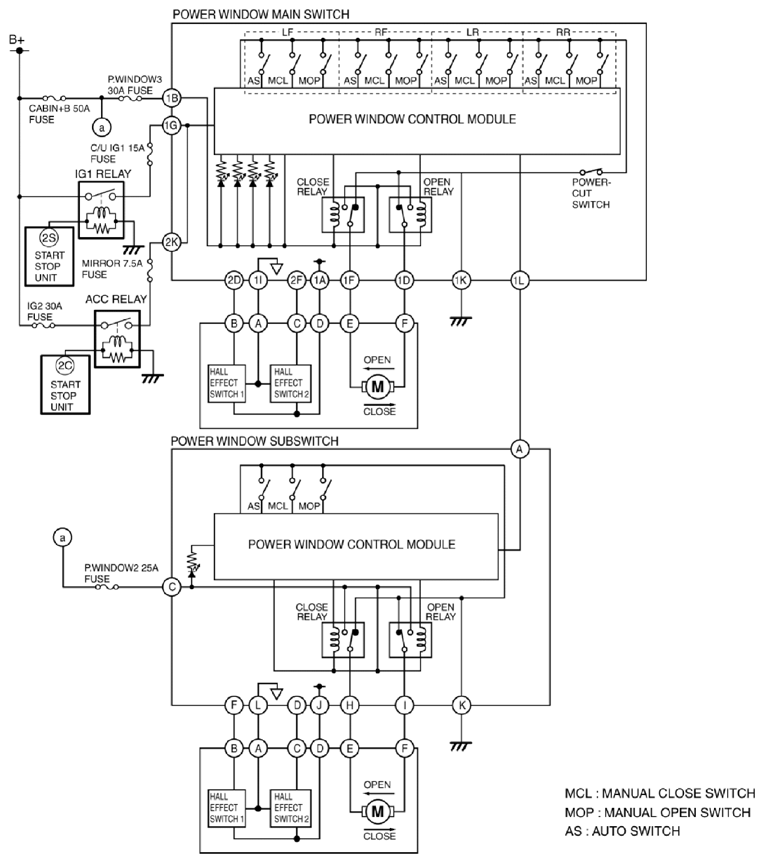

Fig 2: Power Window System Wiring Diagram (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
