SUNVISOR Removal/Installation

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the screw.

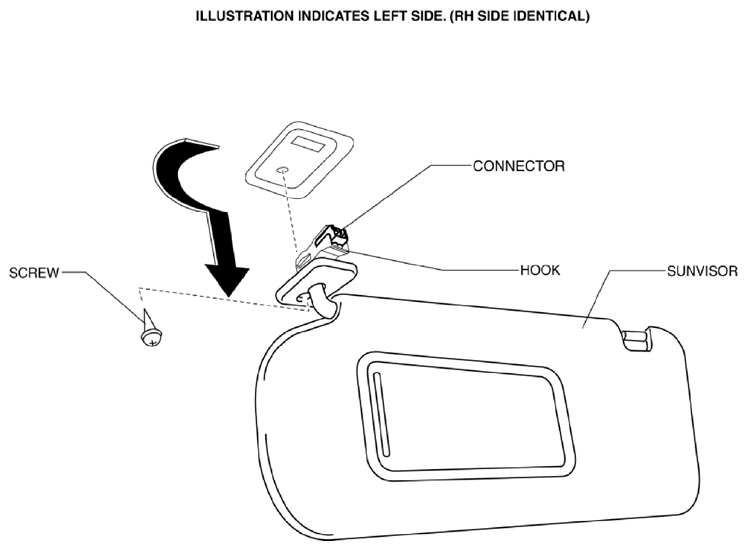

    Fig 1: Removing Sunvisor Screw
    G10950328Courtesy of MAZDA MOTORS CORP.
  3. Remove the sunvisor in the direction of the arrow shown in the figure while detaching hook.
  4. Disconnect the vanity mirror illumination connector (with vanity mirror illumination).
  5. Press the center adaptor tabs in the direction of the arrow (1) shown in the figure using two remover tool.

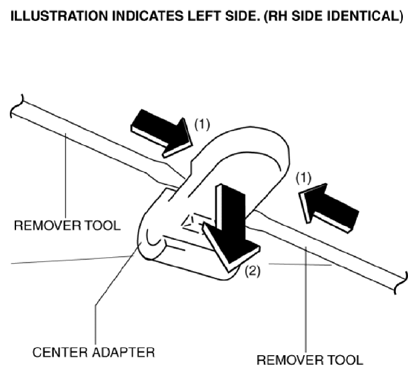

    Fig 2: Removing Center Adaptor
    G10950329Courtesy of MAZDA MOTORS CORP.
  6. Remove the center adaptor in the direction of the arrow (2) shown in the figure.
  7. Install in the reverse order of removal.
