Sail Garnish Removal/Installation: Notes
- Open the front door.
- Fully open the front door glass.

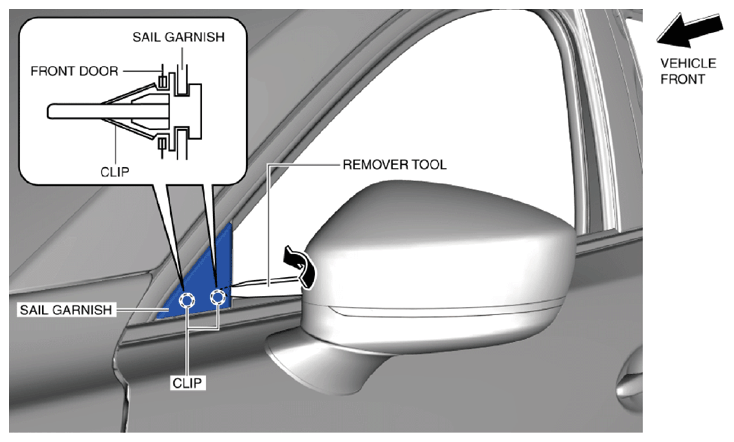

- Insert a remover tool into the position shown in the figure, move it in the direction of the arrow and detach the sail garnish clip.
Courtesy of MAZDA MOTORS CORP.

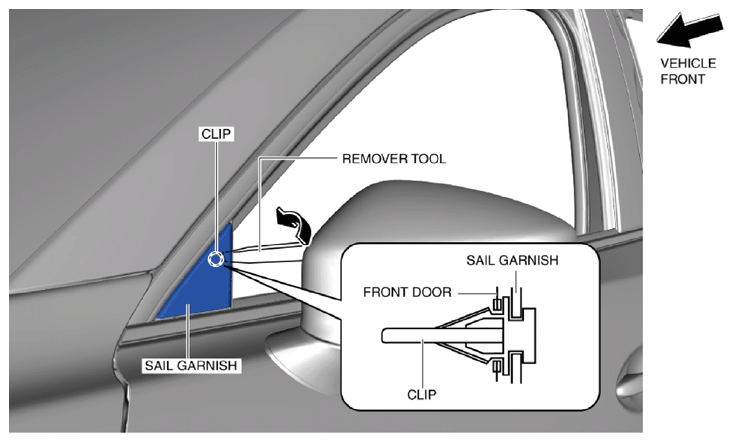

- Insert a remover tool into the position shown in the figure, move it in the direction of the arrow and detach the sail garnish clips.
Courtesy of MAZDA MOTORS CORP.
- Remove the sail garnish.
- Install in the reverse order of removal. (Refer to SAIL GARNISH INSTALLATION NOTE .)
