Front Splash Shield Removal/Installation: RH

Turn the steering wheel in the direction of the arrow shown in the figure so that the front side of the tire is facing outward.

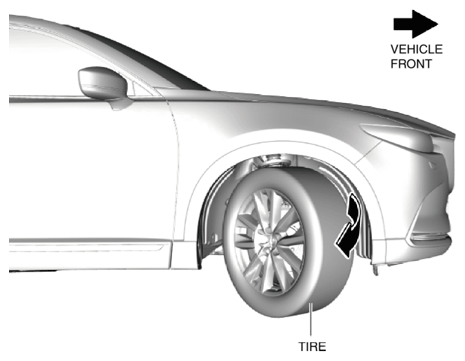

Fig 1: Turning Steering Wheel And Front Side Of Tire Facing Outward (RH)
Courtesy of MAZDA MOTORS CORP.
Remove the fastener from the front mudguard.

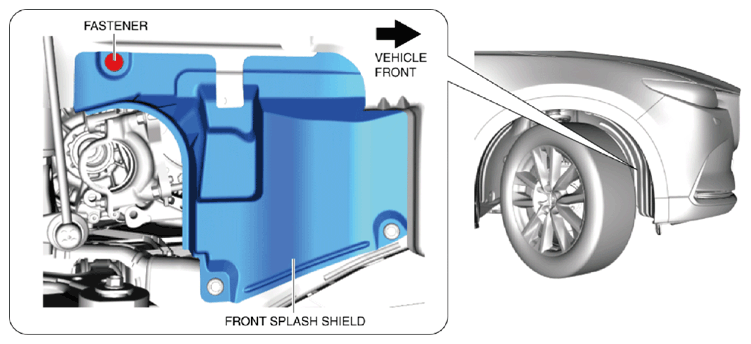

Fig 2: Identifying Front Splash Shield And Fastener (Front Side)
Courtesy of MAZDA MOTORS CORP.
Remove the fastener from the front splash shield.

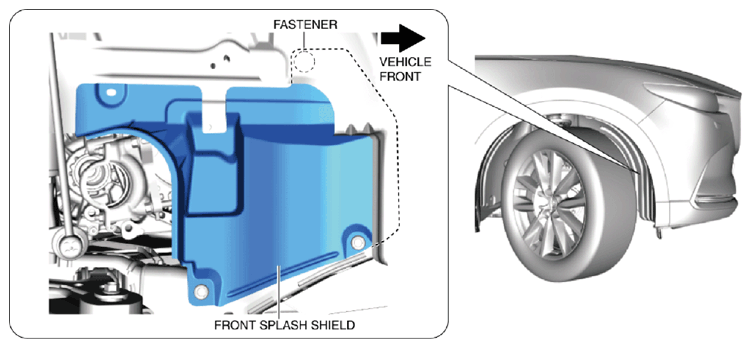

Fig 3: Identifying Front Splash Shield And Fastener (Rear Side)
Courtesy of MAZDA MOTORS CORP.
Remove the fastener from the front splash shield.

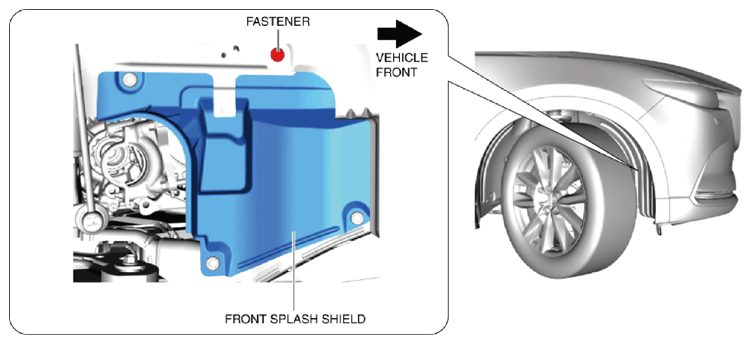

Fig 4: Identifying Front Splash Shield And Fastener Position
Courtesy of MAZDA MOTORS CORP.
Remove the fasteners from the front splash shield.

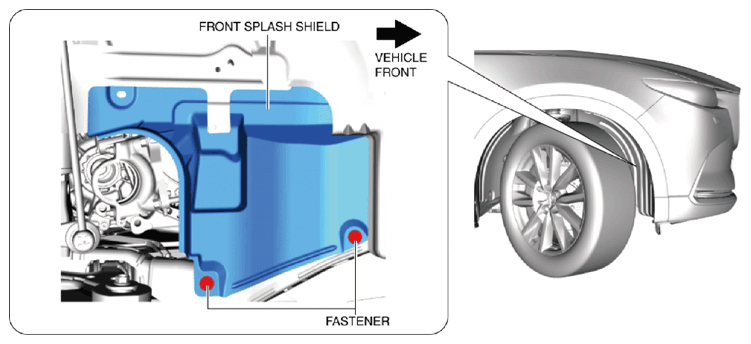

Fig 5: Identifying Front Splash Shield And Fasteners
Courtesy of MAZDA MOTORS CORP.
Remove the front splash shield.
Install in the reverse order of removal.
