Power Liftgate (PLG) Control Module Removal/Installation

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Trunk covering (Refer to TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (Refer to TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk side pocket (Refer to TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
    4. Trunk end trim (Refer to TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Rear scuff plate (Refer to REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Third-row seat cushion (Refer to THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
    7. Third-row seat back component (Refer to THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
    8. Trunk side trim (Refer to TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connectors.

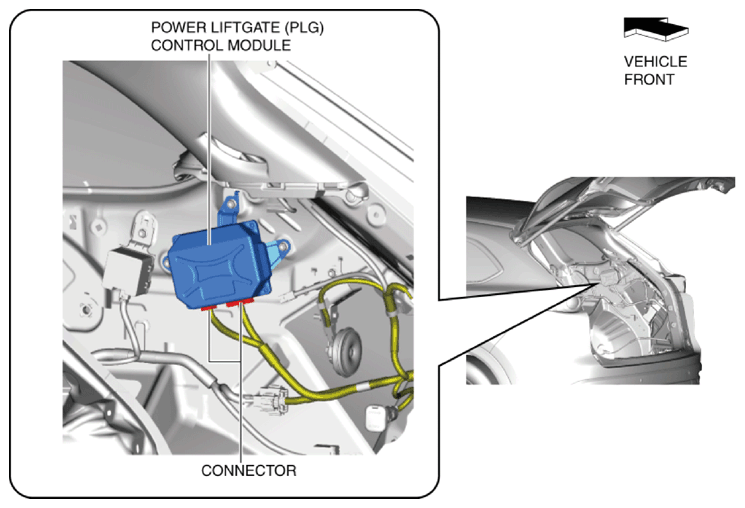

    Fig 1: Identifying PLG Control Module Connector
    G10949470Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.

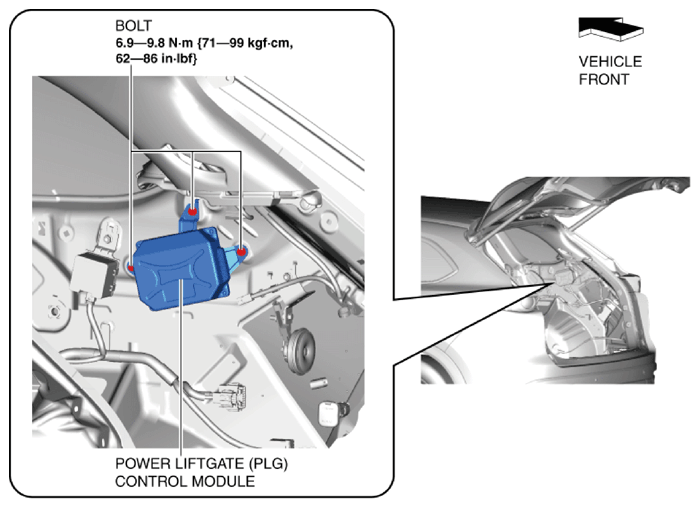

    Fig 2: Identifying PLG Control Module Bolts With Torque Specifications
    G10949471Courtesy of MAZDA MOTORS CORP.
  5. Remove the power liftgate (PLG) control module.
  6. Install in the reverse order of removal.
