Rear Inner Handle

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the rear door trim. (Refer to REAR DOOR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the door lock knob cable and the inner handle cable from the rear inner handle.

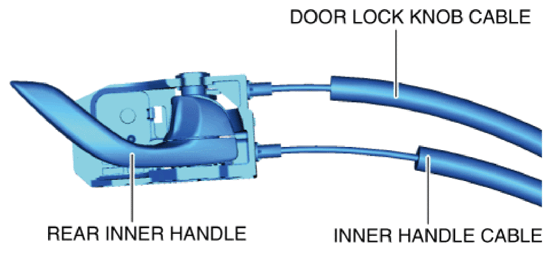

    Fig 1: Identifying Door Lock Knob Cable, Inner Handle Cable And Rear Inner Handle
    G10949766Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
