Short-cord Assembly Note

  1. When assembling the short-cord, press it into the groove of the CMU.

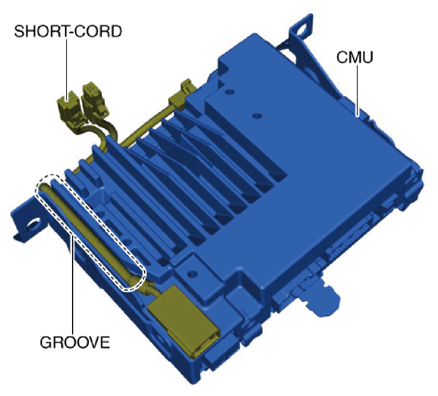

    Fig 1: Identifying Short Cord, Groove And CMU
    G10950657Courtesy of MAZDA.
