Procedure Not Using M-MDS
CAUTION:
- Perform Steps 4 and 5 within 30 s.
- Empty the vehicle except for the spare tire, jack and vehicle tools.
- Adjust the tire pressure to the specification. (Refer to WHEEL AND TIRE SPECIFICATION
.)
- Move the vehicle to level ground.
- Switch the ignition ON (engine off or on).
NOTE:

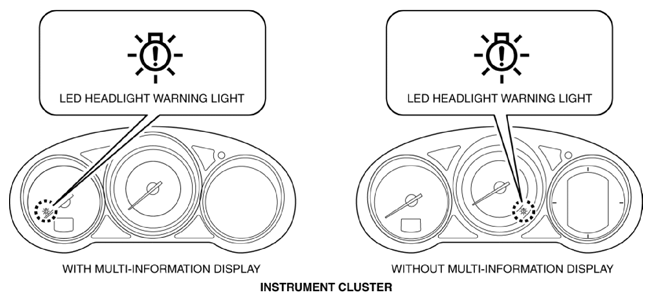

- The LED headlight warning light continues flashing during the first initialization, however, continue the work because it does not indicate an improper procedure.
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If the terminals are mistakenly connected, vehicle damage or fire could occur. When connecting with the jumper wire, thoroughly verify what terminals are being connected to prevent a miss-connection.
Courtesy of MAZDA MOTORS CORP.
- Using a jumper wire, connect DLC-2 terminals B and J (ground) three times at 0.5-1.5 s
intervals as shown in the figure.
- Verify the LED headlight warning light.
- The initialization is completed if the LED headlight warning light flashes three times every 0.25 s and turns off. Go to the next step.
Courtesy of MAZDA MOTORS CORP.
- If the LED headlight warning light flashes at 0.25 s
intervals, the procedure may have been performed incorrectly. Repeat the procedure from Step 4.
- If the LED headlight warning light turns on, the headlight auto leveling system may have a malfunction. Perform DTC inspection. (Refer to DTC INSPECTION [AUTO LEVELING CONTROL MODULE]
.) (Refer to DTC INSPECTION [ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE]
.)
- Repair or replace the malfunctioning location, then repeat the procedure from Step 4.
- Adjust the headlight aiming. (Refer to HEADLIGHT AIMING .)
