Water Hose Installation Note

Install the water hose to the oil cooler as shown in the figure with the hose clamp expanded.
NOTE:
- A new water hose and hose clamp are attached.
Fig 1: Installing Water Hose To Oil Cooler
Courtesy of MAZDA MOTORS CORP.

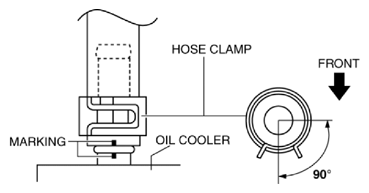

Install the hose clamp to the position shown in the figure.

Fig 2: Installing Hose Clamp
Courtesy of MAZDA MOTORS CORP.
- Verify that the installation angle of the hose clamp is within the range shown in the figure.
Verify that the hose clamp does not interfere with any other components.
