Rear Buckle Installation Note

  1. After installing the rear center seat belt, place the release switch of the rear buckle so that it faces the vehicle's inner-side as shown in the figure.

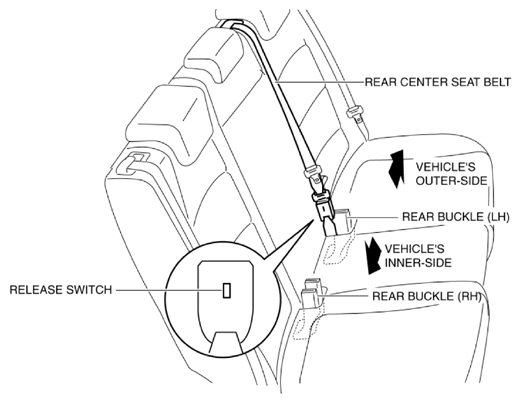

Fig 1: Installing Rear Center Seat Belt
G10938012Courtesy of MAZDA MOTORS CORP.
