SKYACTIV-G 2.5

Verify that all of the following PIDs are within the following specifications. All PIDs must be within specifications before the engine is started to initiate the evaporative system test.
- IAT: 5-35 °C {41-95 °F}
- FLI: 15-85 %
- BARO: 72.2 kPa {0.736 kgf/cm ² , 10.5 psi}
Start the engine and warm it up completely.
Clear the DTCs from the PCM memory using the M-MDS. (See AFTER REPAIR PROCEDURE .)
Drive the vehicle as shown in the graph.

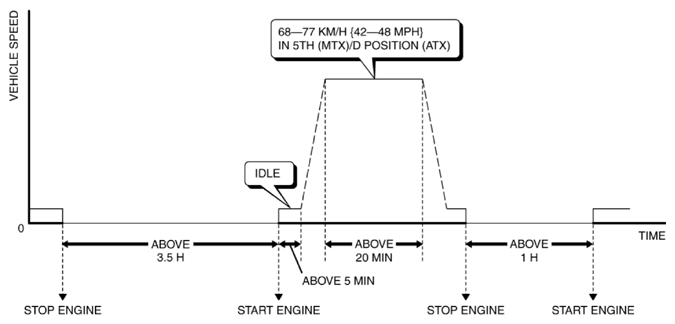

Fig 1: Drive Cycle Graph (SKYACTIV-G 2.5)
Courtesy of MAZDA MOTORS CORP.
Access the ON BOARD SYSTEM READINESS to verify the OBD monitoring status.
- If completed, the OBD monitoring status items change from non-completed to completed.
- If not completed, switch the ignition off then go back to Step 1.
Access the DIAGNOSTIC MONITORING TEST RESULTS to verify the monitor results.
- If detected values are not within specification, repair has not been completed.
Verify that no DTCs are displayed.
