Mass Air Flow (MAF) Sensor/Intake Air Temperature (IAT) Sensor No. 1 Removal/Installation

NOTE:
  • Because the IAT sensor No. 1 is integrated in the MAF sensor, replacing the IAT sensor No. 1 includes replacement of the MAF sensor/IAT sensor No. 1.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Disconnect the MAF sensor/IAT sensor No. 1 connector.
  3. Remove the MAF sensor/IAT sensor No. 1.

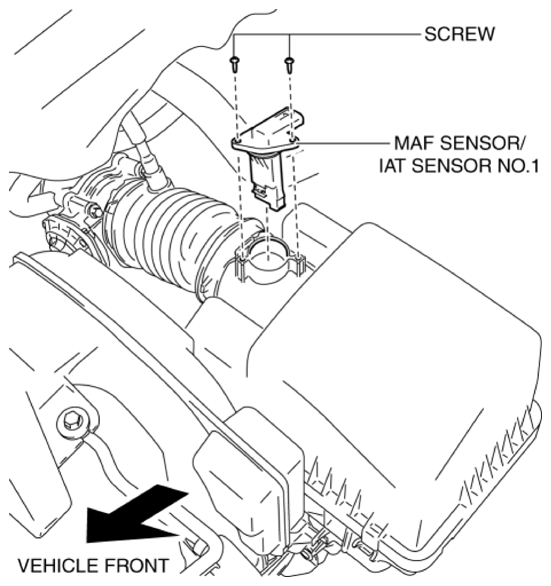

    Fig 1: Identifying MAF Sensor/IAT Sensor No. 1 And Screws
    G10916573Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
