Manifold Absolute Pressure (Map) Sensor/Intake Air Temperature (IAT) Sensor No. 2 Removal/Installation

NOTE:
  • Because the IAT sensor No. 2 is integrated in the MAP sensor, replacing the IAT sensor No. 2 includes replacement of the MAP sensor/IAT sensor No. 2.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Disconnect the MAP sensor/IAT sensor No. 2 connector.
  3. Remove the MAP sensor/IAT sensor No. 2.

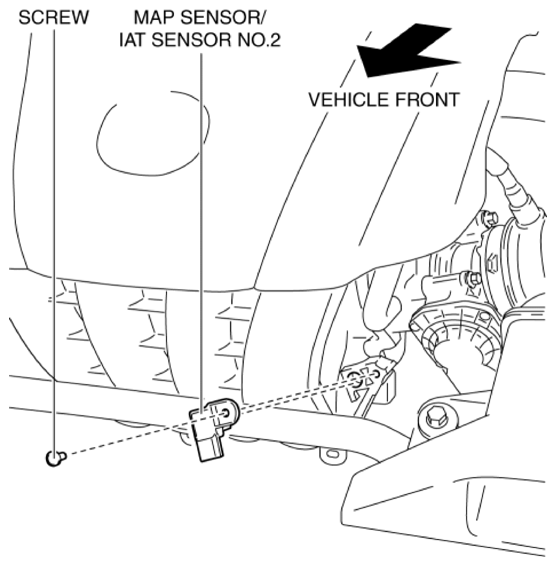

    Fig 1: Identifying MAP Sensor/IAT Sensor No. 2 And Screw
    G10916580Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
