Water Pipe Installation Note
Assemble the water pipe so that the stud bold is inserted between section A.

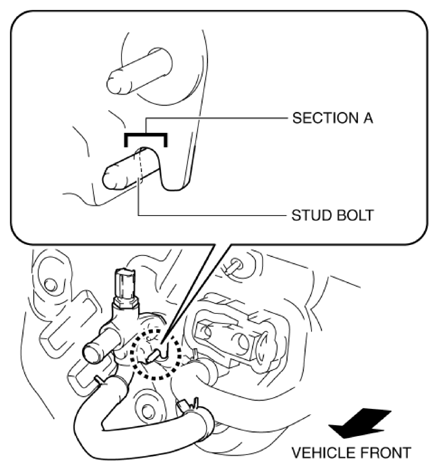

Fig 1: Assembling Water Pipe
Courtesy of MAZDA MOTORS CORP.
