Oil Cooler Installation Note
Oil Cooler Installation Note
Install the oil cooler with the tab aligned with the notch of the oil filter body.

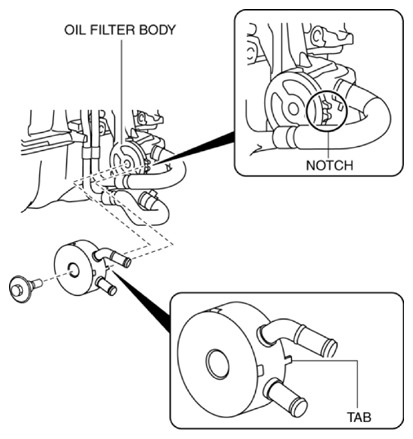

Fig 1: Identifying Oil Filter Body, Notch And Tab
Courtesy of MAZDA MOTORS CORP.
