DSC HU/CM Connector Removal Note

  1. Pull the lock lever down in the direction of the arrow while pressing the tab of the connector cover.

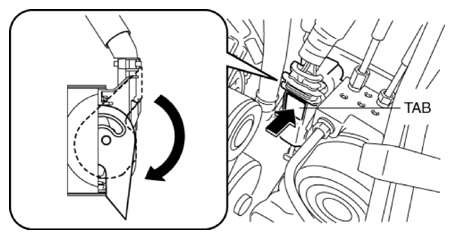

    Fig 1: Pulling Lock Lever Down
    G10936926Courtesy of MAZDA MOTORS CORP.
  2. Pull the connector toward the vehicle rear and remove it.
