Rear Door Quarter Glass Removal/Installation: Notes
- Fully lower the rear door glass.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION
.)
- Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION
.)

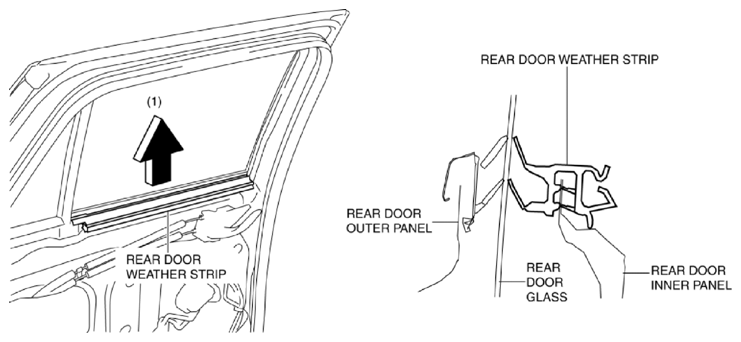

- Remove the rear door weather strip arrow (1) shown in the figure.
Courtesy of MAZDA MOTORS CORP.

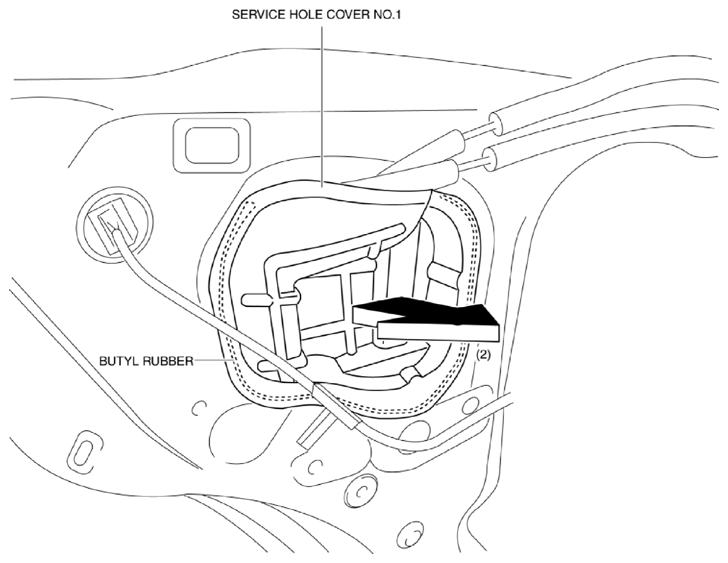

- Remove the service hole cover No. 1 arrow (2) shown in the figure.
CAUTION:
- When removing service hole cover No. 1, remove it while gradually stripping the butyl rubber. Otherwise service hole cover No. 1 may be deformed.
Courtesy of MAZDA MOTORS CORP.

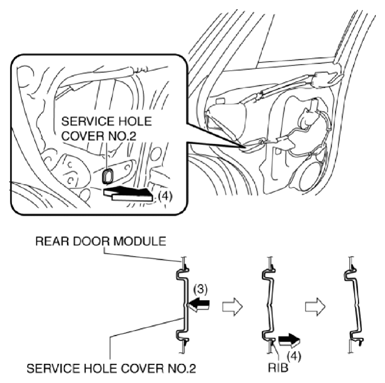

- Remove the service hole cover No. 2 arrow in the order of (3), (4) shown in the figure.
Courtesy of MAZDA MOTORS CORP.

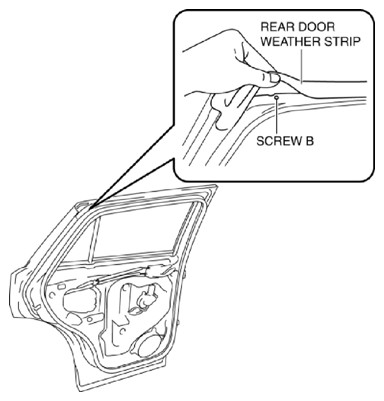

- Partially peel back rear door weather strip.
Courtesy of MAZDA MOTORS CORP.

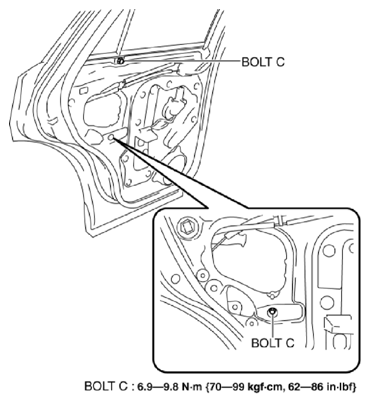

- Remove screw B.
- Remove bolts C.
Courtesy of MAZDA MOTORS CORP.

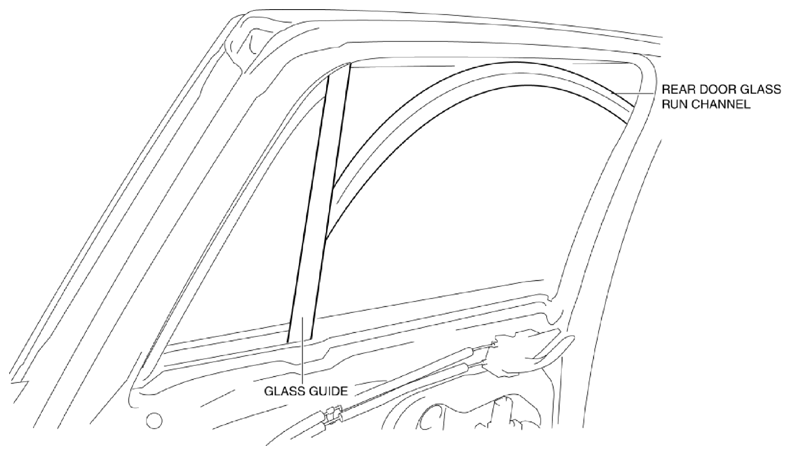

- Partially peel back the rear door glass run channel.
Courtesy of MAZDA MOTORS CORP.

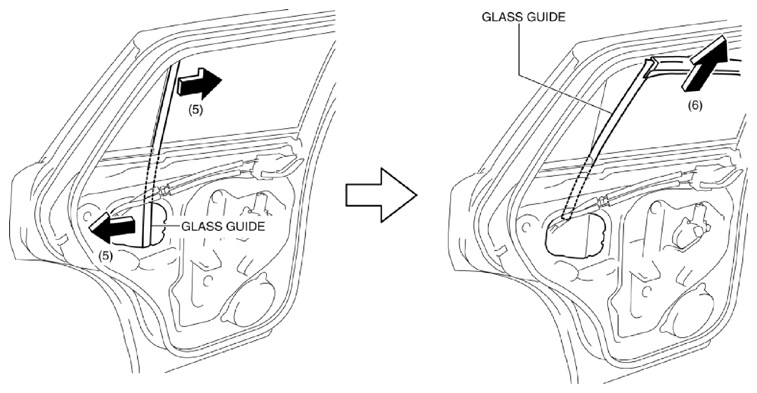

- Pull the glass guide in the direction of the arrow (5) shown in the figure, then remove the glass guide direction of the arrow (6) shown in the figure. (See REAR DOOR GLASS RUN CHANNEL INSTALLATION NOTE and
GLASS GUIDE INSTALLATION NOTE .)
Courtesy of MAZDA MOTORS CORP.

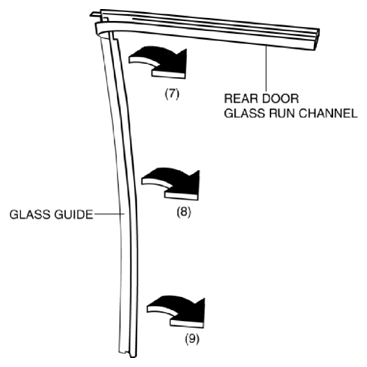

- Pull the rear door glass run channel in the direction of the arrow in the order of (7),(8),(9) then remove the rear door glass run channel.
Courtesy of MAZDA MOTORS CORP.

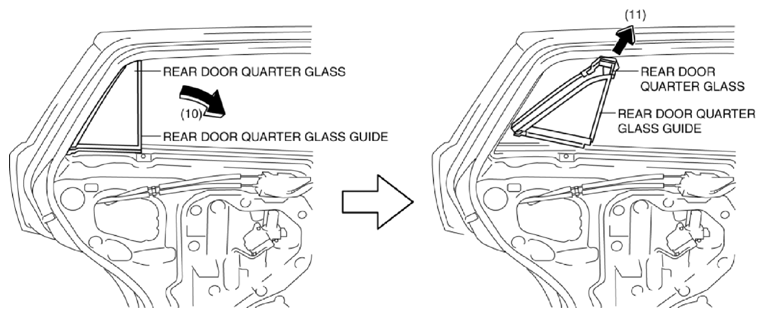

- Slide the rear door quarter glass and rear door quarter glass guide as a single unit in the direction of the arrow (10) shown in the figure.
Courtesy of MAZDA MOTORS CORP.
- Remove the rear door quarter glass and rear door quarter glass guide as a single unit in the direction of the arrow (11) shown in the figure.

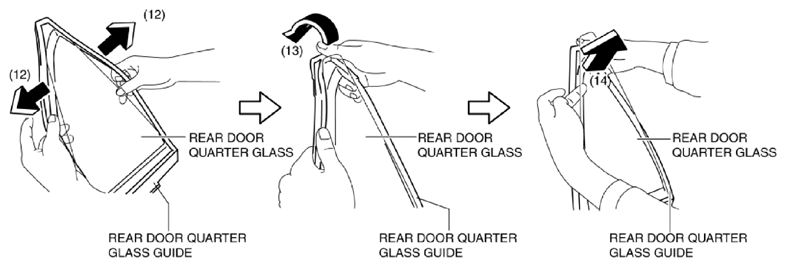

- Pull the rear door quarter glass guide in the direction of the arrow in the order of (12), (13), (14) and remove the rear door quarter glass.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
