U.S.A. And CANADA: AWD: Notes

  1. Level the vehicle.
  2. Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
  3. Drain the fuel. (See FUEL DRAINING PROCEDURE .)
  4. Using the following procedure:

    6:4 split type

    4:2:4 split type

    Main side

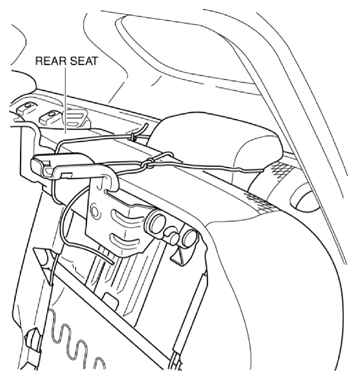

    Fig 1: Identifying Rear Seat (Main Side)
    G10916279Courtesy of MAZDA MOTORS CORP.

    Sub side

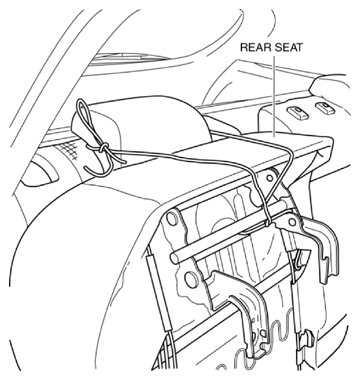

    Fig 2: Identifying Rear Seat (Sub Side)
    G10916280Courtesy of MAZDA MOTORS CORP.
  5. Partially peel back the floor mat as shown in the figure.

    Main side

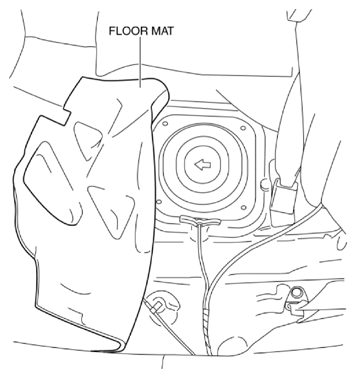

    Fig 3: Identifying Floor Mat (Main Side)
    G10916281Courtesy of MAZDA MOTORS CORP.

    Sub side

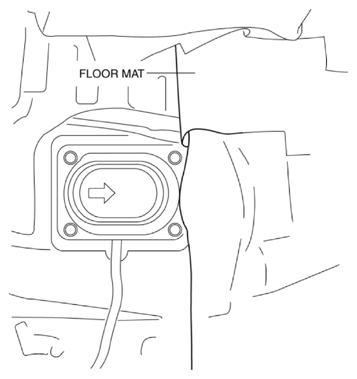

    Fig 4: Identifying Floor Mat (Sub Side)
    G10916282Courtesy of MAZDA MOTORS CORP.
  6. Remove the service hole cover.

    Main side

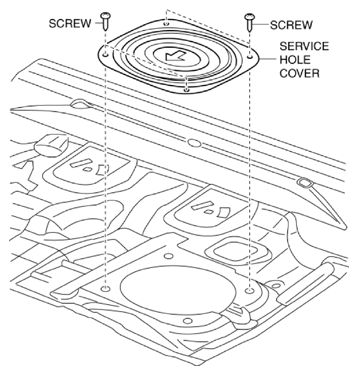

    Fig 5: Identifying Service Hole Cover And Screws (Main Side)
    G10916283Courtesy of MAZDA MOTORS CORP.

    Sub side

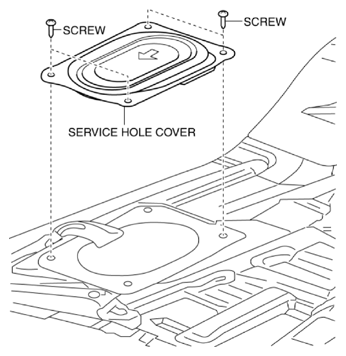

    Fig 6: Identifying Service Hole Cover And Screws (Sub Side)
    G10916284Courtesy of MAZDA MOTORS CORP.
  7. Disconnect the following parts:

    Main side

    Sub side

    • Fuel gauge sender unit (sub) connector
  8. Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  9. Disconnect the HO2S connector.
  10. Remove the TWC and HO2S as a single unit. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
  11. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
  12. Remove in the order indicated in the table.
  13. Install in the reverse order of removal.
  14. Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)

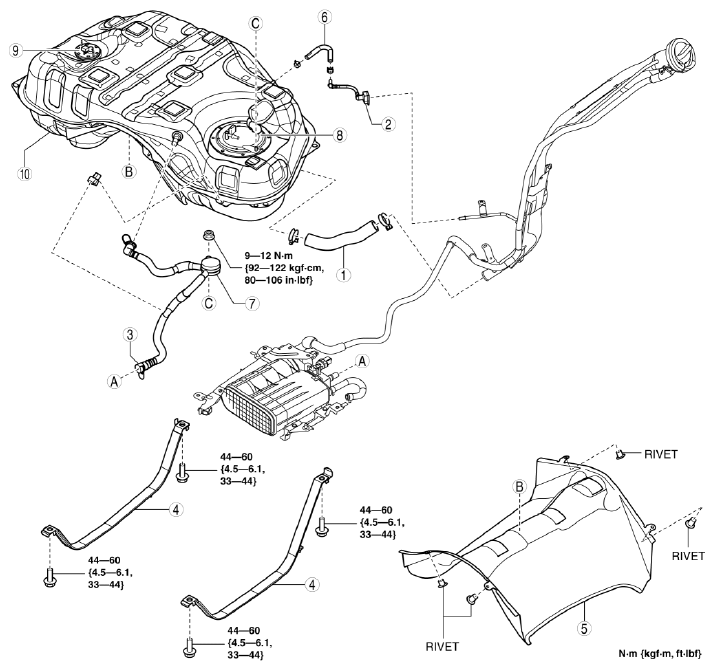

Fig 7: Exploded View Of Fuel Tank - U.S.A. And Canada (AWD)
G10916285Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Joint hose
(See Joint hose installation note .)
2 Quick release connector
(See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
3 Quick release connector
(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION .)
4 Fuel tank strap
5 Fuel tank insulator
(See Fuel tank insulator removal note .)
6 Breather hose
(See Breather hose installation note .)
7 Pressure control valve
(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION .)
8 Fuel pump unit
(See FUEL PUMP UNIT REMOVAL/INSTALLATION .)
9 Fuel gauge sender unit (sub)
(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [AWD] .)
10 Fuel tank
(See Fuel tank removal note .)
