Dynamic Stability Control Location Index

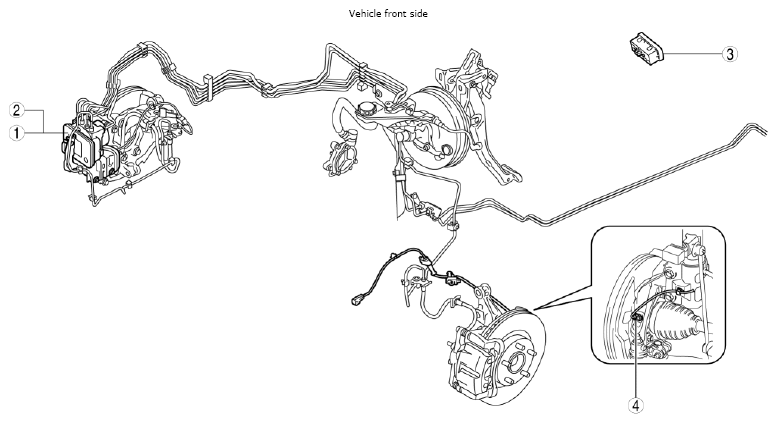

Vehicle front side
COMPONENT DESCRIPTION
| 1 | DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION .) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE .) (See DSC HU/CM INSPECTION .) |
| 2 | Brake fluid pressure sensor (built-into DSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION .) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE .) |
| 3 | TCS OFF switch (See TCS OFF SWITCH REMOVAL/INSTALLATION .) (See TCS OFF SWITCH INSPECTION .) |
| 4 | Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION .) |

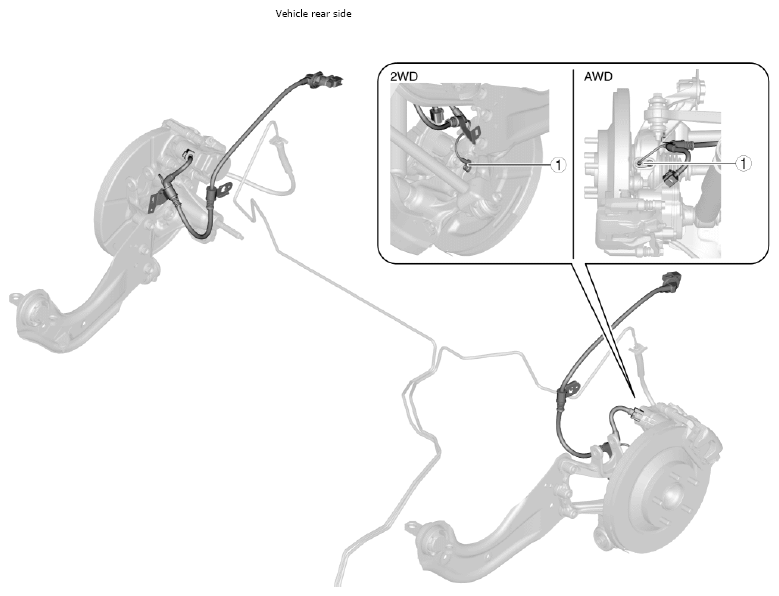

Vehicle rear side
COMPONENT DESCRIPTION
| 1 | Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [2WD] .) (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [AWD] .) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION [2WD] .) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION [AWD] .) |
