Procedure For Communication Between Coil Antenna And Remote Transmitter

• While the push button start indicator light (green) is flashing, press the top part of the remote transmitter against the center of the push button start.

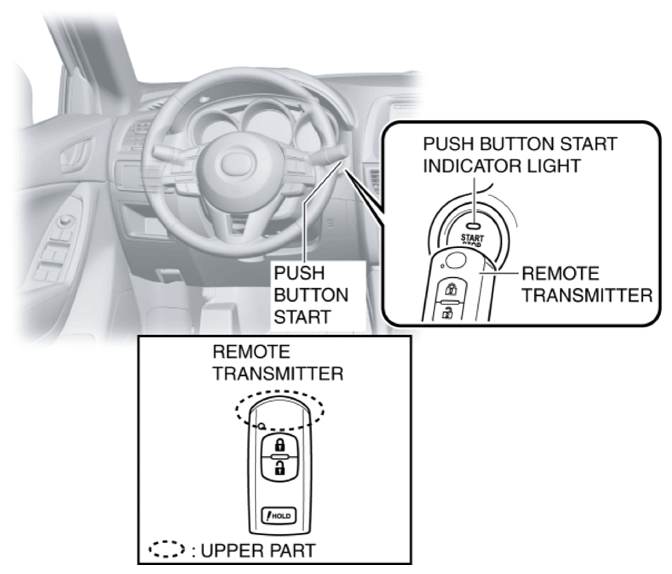

Fig 1: Identifying Push Button Start Indicator Light

Courtesy of MAZDA MOTORS CORP.

NOTE:

• The coil antenna is integrated with the push button start.
