Water Hose: Notes

  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the air cleaner and air hose as a single unit. (Refer to INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  3. Remove the battery tray and PCM component. (Refer to BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  4. Remove the front under cover No. 2. (Refer to FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  5. Drain the engine coolant. (Refer to ENGINE COOLANT REPLACEMENT .)
  6. Remove in the order indicated in the table.

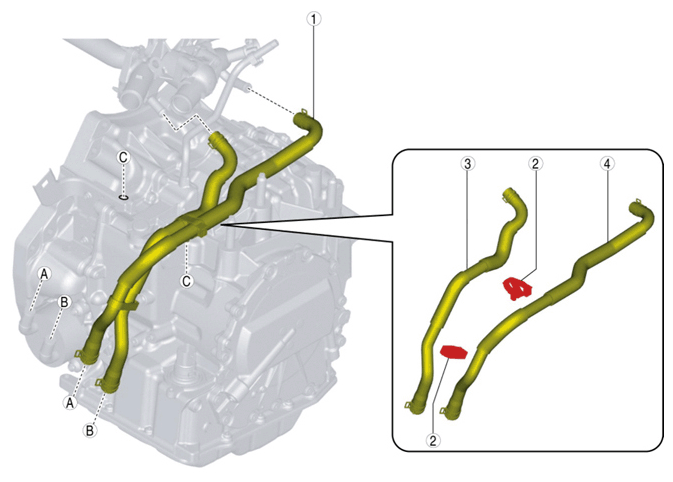

    Fig 1: Identifying Oil Cooler Components
    G10909972Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Water hose component
    (See Water Hose No. 1 and No. 2 (oil cooler side) Installation Note .)
    (See Water Hose No. 1 (outlet case side) Installation Note .)
    (See Water Hose No. 2 (bypass pipe side) Installation Note .)
    2 Hose clip
    3 Water hose No. 1
    (See Water Hose No. 1 and No. 2 (oil cooler side) Installation Note .)
    (See Water Hose No. 1 (outlet case side) Installation Note .)
    4 Water hose No. 2
    (See Water Hose No. 1 and No. 2 (oil cooler side) Installation Note .)
    (See Water Hose No. 2 (bypass pipe side) Installation Note .)
  7. Install in the reverse order of removal.
  8. Add the engine coolant. (Refer to ENGINE COOLANT REPLACEMENT .)
