Propeller Shaft Inspection

WARNING: This page is about a different variant/trim than selected.

Remove the propeller shaft. (Refer to PROPELLER SHAFT REMOVAL/INSTALLATION .)
Measure the propeller shaft center runout using the dial gauge.

Fig 1: Measuring Propeller Shaft Runout
Courtesy of MAZDA MOTORS CORP.
- If it exceeds the maximum specification, replace the propeller shaft as a single component. (Refer to PROPELLER SHAFT REMOVAL/INSTALLATION .)
  Propeller shaft maximum runout
- 0.8 mm {0.031 in}

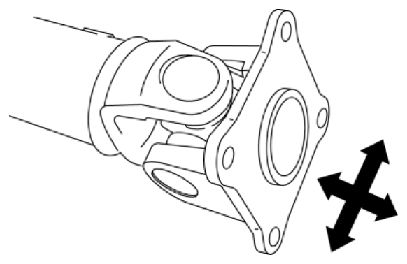

Inspect the play and rotation of the joint by turning the universal joint in the directions shown by the arrows.

Fig 2: Turning Universal Joint
Courtesy of MAZDA MOTORS CORP.
- If it is not within the specification, replace the propeller shaft. (Refer to PROPELLER SHAFT REMOVAL/INSTALLATION .)
  Propeller shaft rotation torque
- 0.29-0.98 N.m {3.0-9.9 kgf.cm, 2.6-8.6 in.lbf}
