Windshield Washer Nozzle Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  2. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
  3. Disconnect the windshield washer hose from the windshield washer nozzle.

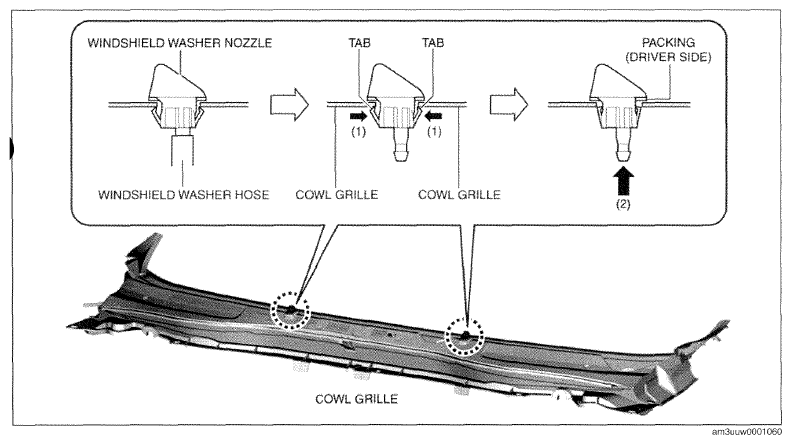

    Fig 1: Disconnect Windshield Washer Hose From Windshield Washer Nozzle
    G09784090Courtesy of MAZDA MOTORS CORP.
  4. Press out the windshield washer nozzle in the direction of arrow (2) shown in the figure while pressing the windshield washer nozzle tabs in the direction of arrows (1) shown in the figure.
  5. Remove the windshield washer nozzle.
  6. Install in the reverse order of removal.
  7. Adjust the windshield washer nozzle. (See WINDSHIELD WASHER NOZZLE ADJUSTMENT .)
