Front Combination Light Removal/Installation
WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS .)
NOTE:
- Fogging or condensation on the inside of the front combination lights may occur due to a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights. However, it has no effect on the light performance because the temperature inside the front combination lights rises after illuminating the headlights or a period of time has elapsed.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
- Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)

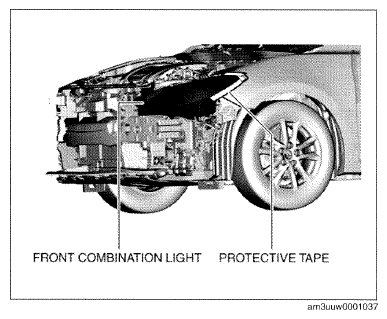

- To prevent scratches or damage, affix protective tape to the position shown in the figure.CAUTION:
- When removing the front combination light from the body, it could interfere with the body and cause scratching or damage to the body. When removing the front combination light from the body, apply protective tape to the body.
- Disconnect the connector.

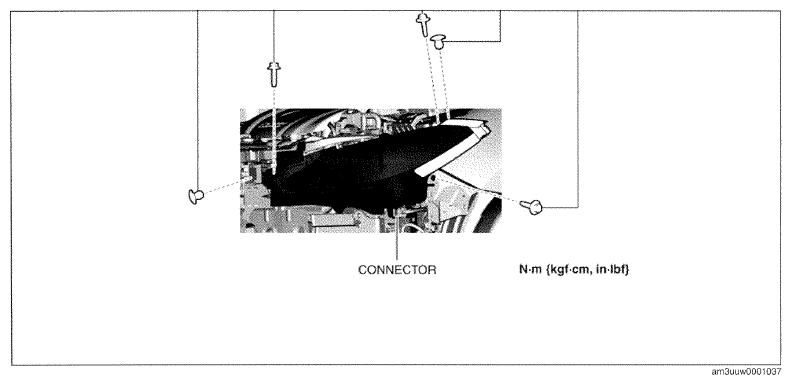

- Remove the bolts in the order of (1), (2), and (3).
- Remove the fasteners.

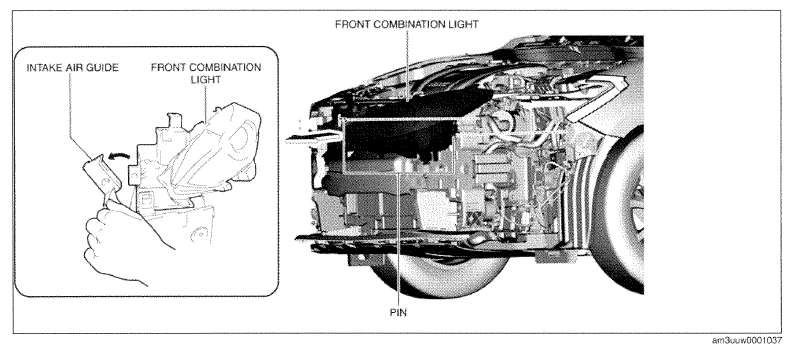

- Pull the front combination light in the direction of the arrow shown in the figure while partially setting the intake air guide aside, and pull out the front combination light pins from the body.
- Remove the front combination light.
- Install in the reverse order of removal.
- Adjust the headlight aiming. (See HEADLIGHT AIMING .)
