Condenser Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Rear seat cushion (LH) (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    2. Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    4. Tire house trim (LH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    5. C-pillar trim (LH) (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connectors.
  4. Remove the bolts.
  5. Remove the condensers.
  6. Install in the reverse order of removal.

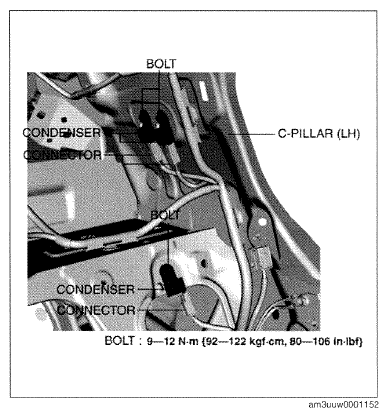

    Fig 1: Condenser, C - Pillar And Bolt And Bolt With Torque Specification
    G09784220Courtesy of MAZDA MOTORS CORP.
