Blower Unit Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the following parts:
1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
3. Dashboard undercover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
4. Side wall (passenger-side) (See SIDE WALL REMOVAL/INSTALLATION .)
5. Front heat duct (passenger-side) (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
6. Front scuff plate (passenger-side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
7. Front side trim (passenger-side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
8. Dashboard undercover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
9. Lower panel (passenger-side) (See LOWER PANEL REMOVAL/INSTALLATION .)
Disconnect the blower motor connector.
Disconnect the air intake actuator connector.

Fig 1: Identifying Air Intake Actuator Connector
Courtesy of MAZDA MOTORS CORP.
Remove the blower unit installation nuts.
Remove the blower unit as shown in the figure.
CAUTION:
- When removing the blower unit, move it little by little while verifying that there is no sticking in the surrounding parts or the wiring harness. If the blower unit is removed with excessive force, surrounding parts or the blower unit could be damaged.

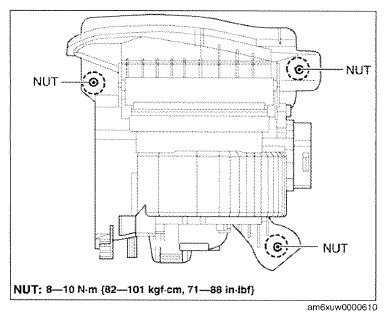

Fig 2: Blower Unit And Nuts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

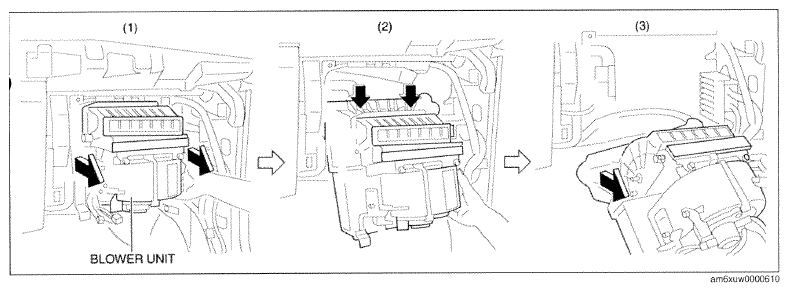

Fig 3: Removing Blower Unit
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
