Full-auto Air Conditioner: Notes

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.

Disassemble in the order indicated in the table.

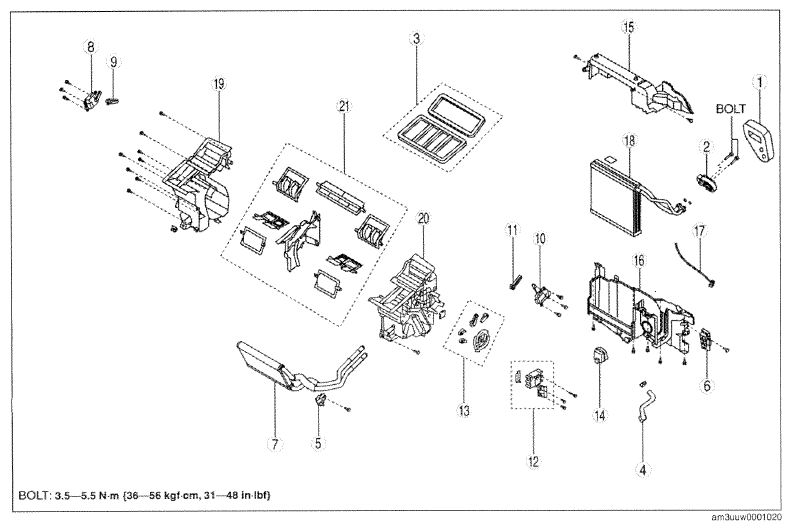

Fig 1: Exploded View Of A/C Unit With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

X: Applicable -: Not applicable
Step	Part name	Disassembly/assembly of main parts
Step	Part name	Heater core	Evaporator temperature sensor	Evaporator
1	Polyurethane foam	X	-	X
2	Expansion valve	-	-	X
3	Adhesive polyurethane	-	-	-
4	Drain hose	-	-	-
5	Plate (1)	X	-	-
6	Plate (2)	X	-	-
7	Heater core	X	-	-
8	Driver-side air mix actuator (with dual type climate control unit)	-	-	-
9	Driver-side air mix link (with dual type climate control unit)	-	-	-
10	Passenger-side air mix actuator (with dual type climate control unit)	-	-	-
10	Air mix actuator (with single type climate control unit)	-	-	-
11	Passenger-side air mix link (with dual type climate control unit)	-	-	-
11	Air mix link (with single type climate control unit)	-	-	-
12	Airflow mode actuator	-	-	-
13	Airflow mode link set	-	-	-
14	Blower fan controller	-	-	-
15	A/C case (1)	-	X	X
16	A/C case (2)	-	X	X
17	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR ASSEMBLY NOTE .)	-	X	X
18	Evaporator	-	-	X
19	A/C case (3)
20	A/C case (4)	-	-	-
21	Door damper	-	-	-

Assemble in the reverse order of disassembly.
