Trunk Lid Lock Striker Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

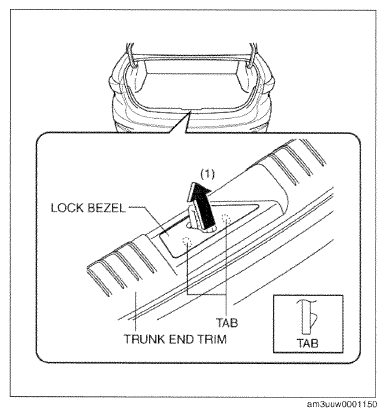

Remove the lock bezel in the direction of the arrow (1) shown in the figure while detaching tabs.

Fig 1: Removing Trunk Lid Lock Striker
Courtesy of MAZDA MOTORS CORP.
Remove the bolts, then remove the trunk lid lock striker.
Install in the reverse order of removal.
Adjust the trunk lid. (See TRUNK LID ADJUSTMENT .)

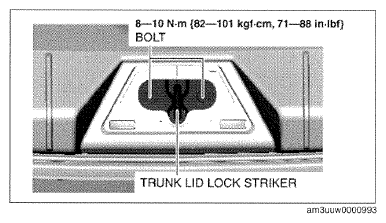

Fig 2: Trunk Lid Lock Striker With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
