Vehicle Rear Side

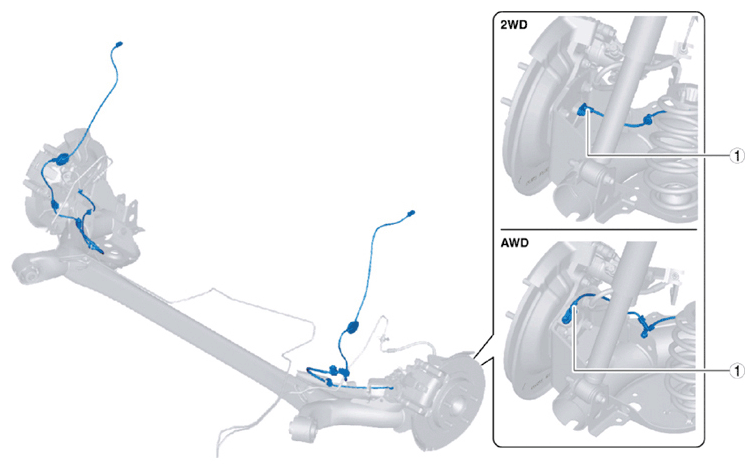

Fig 1: DSC Components (Vehicle Rear Side)
G10909719Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Rear ABS wheel-speed sensor
(See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .)
(See REAR ABS WHEEL-SPEED SENSOR INSPECTION .)
