Parking Brake Lever Removal/Installation: Notes

1. Remove the following parts:
   1. Center console tray (Refer to CENTER CONSOLE TRAY REMOVAL/INSTALLATION .)
   2. Shift bezel (Refer to SHIFT BEZEL REMOVAL/INSTALLATION .)
   3. Upper panel (Refer to UPPER PANEL REMOVAL/INSTALLATION .)
   4. Selector lever knob (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
   5. Shift panel (Refer to SHIFT PANEL REMOVAL/INSTALLATION .)
   6. Console side panel (Refer to CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
   7. Front console box (Refer to FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
   8. CD player (with CD player) (Refer to CD PLAYER REMOVAL .) (Refer to CD PLAYER INSTALLATION .)
   9. Front console (Refer to FRONT CONSOLE REMOVAL/INSTALLATION .)
   10. Side wall (Refer to SIDE WALL REMOVAL/INSTALLATION .)
   11. Rear console (Refer to REAR CONSOLE REMOVAL/INSTALLATION .)
2. Remove in the order indicated in the procedure.
3. Install in the reverse order of removal.
4. After installation, inspect the parking brake lever stroke. (Refer to Parking Brake Lever Inspection .)

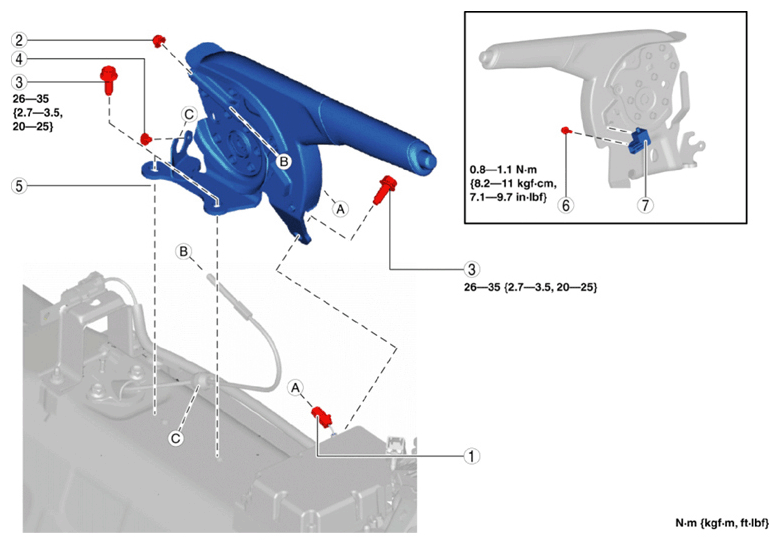

Fig 1: Parking Brake Lever Bolts With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Parking brake switch connector
2	Adjusting nut
3	Bolt (See Bolt Installation Note .)
4	Clip
5	Parking brake lever
6	Bolt
7	Parking brake switch
